American C-Cell/Coffee Candy Duplex Packing Machine For 55 BPM

Share

Issue Time: 2026/1/16 14:12:10

Summary

This project is for duplex packing machine with conveyor for C-Cell/Coffee Candy, the bag size is 60x100mm,the speed can reach 55 bags per minute. The machine can be installed zipper opener, date printer, bag supporter devices and so on for different requirements.

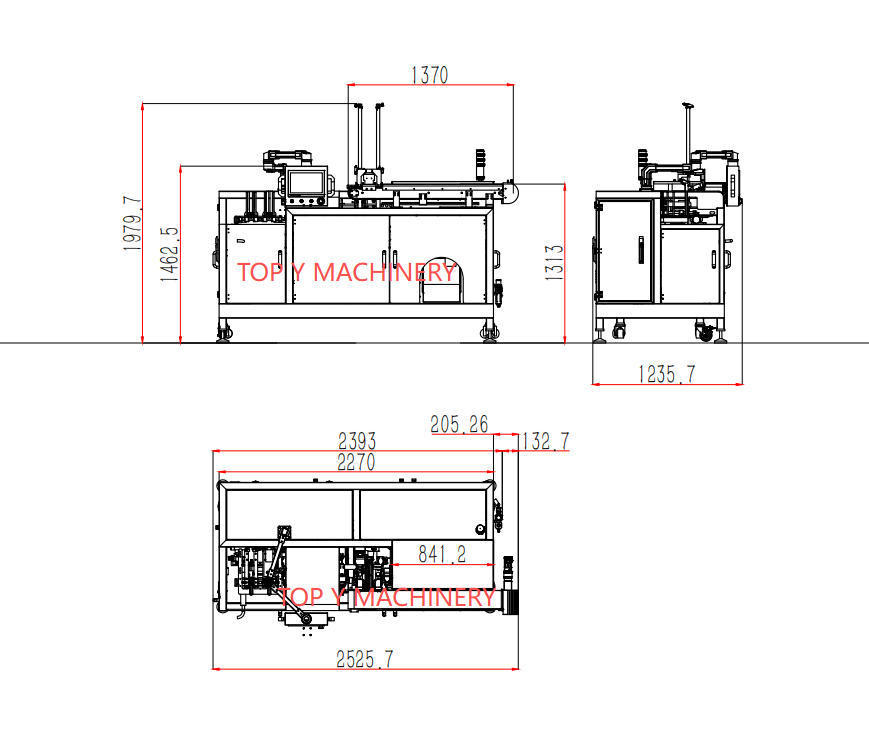

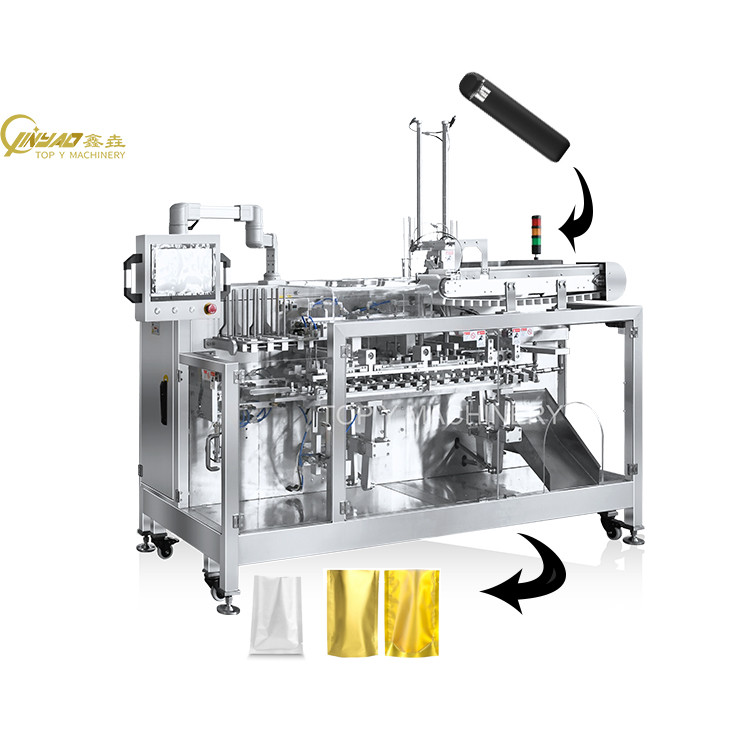

Final picture and drawing

Project name: American C-Cell/Coffee Candy Duplex Packing Machine For 55 BPM

Product: C-Cell/Chocolate Bar

Bag Size: Min. 60 × 100 mm / Max. 70 × 120 mm

Pack Weight: 1pc C-Cell/Coffee Candy packed in each bag

Packing Speed: 40-55 bags/min

Power Supply: 220V,60HZ,Single Phase

Customer Challenge

The bag width is narrow for 60 mm and the customer required the packing speed above 50 bags per minute,so our R&D team needs to customize the packing machine with duplex stations and design the bag magazine to meet the smallest bag width 60 mm.

Key Parts of the Duplex Packing Machine

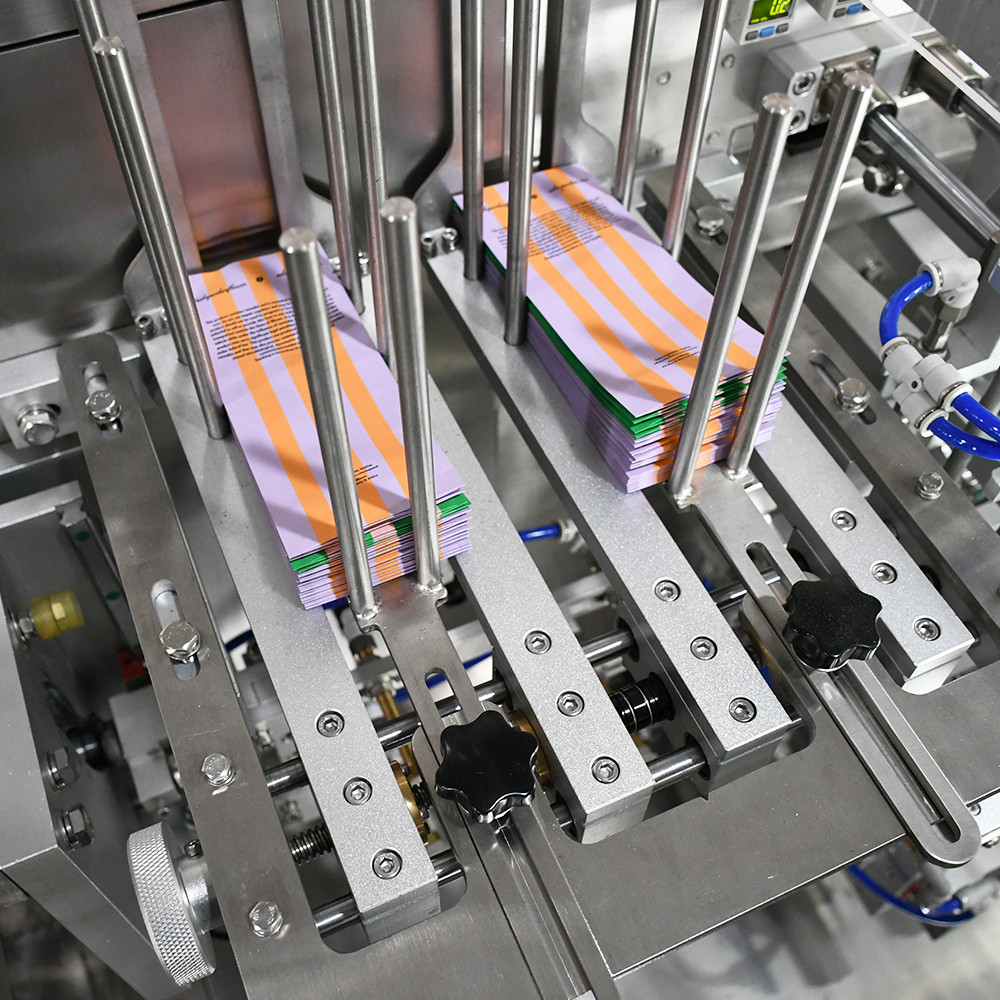

1. Duplex Bag Magazine

The standard model which can store 50-100 bags at once time, also can be made as horizontal design to fit 100-200 bags.

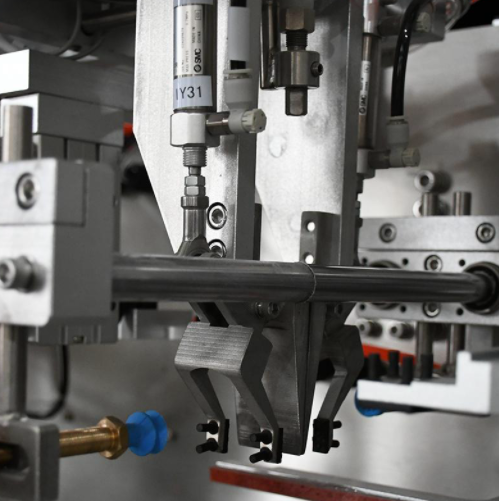

2. Automatic Zipper Opener

Precisely opens the zipper before filling, guaranteeing smooth powder filling into the bag.

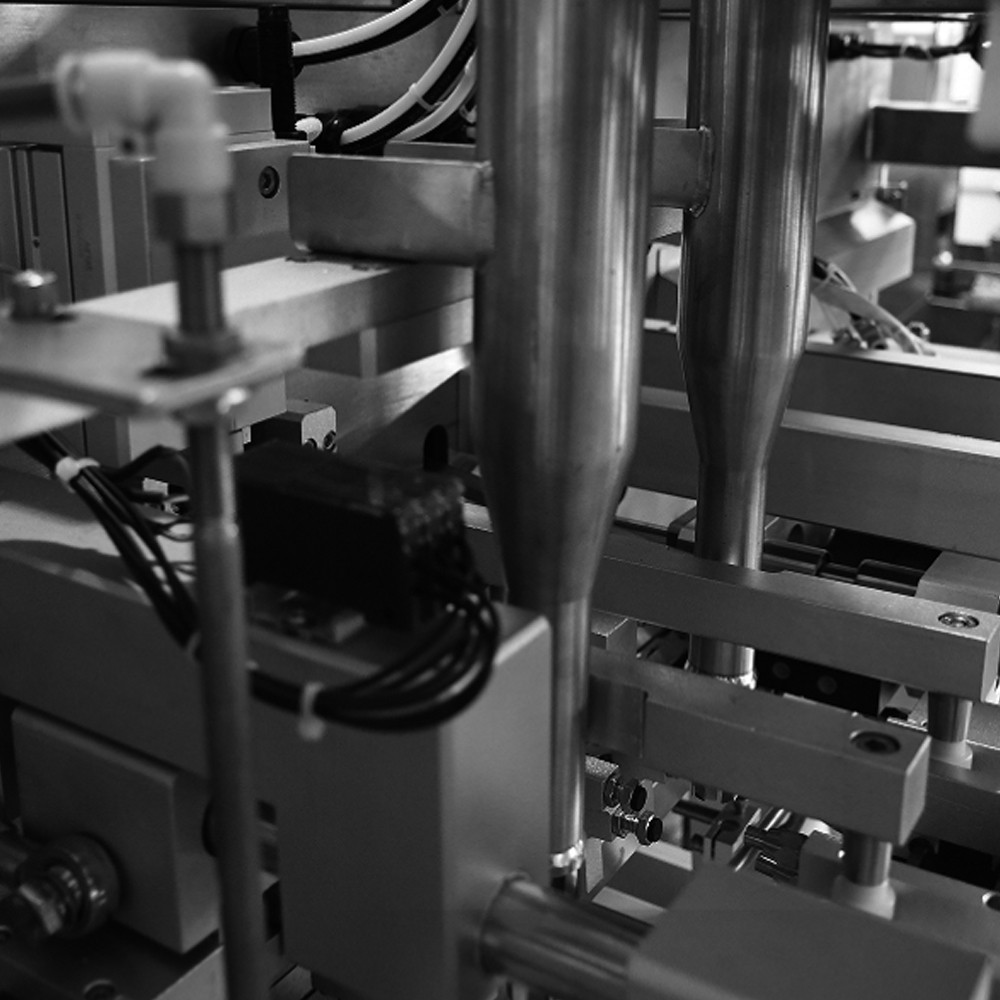

3. Filling Funnel

The funnels can be customized according to the product size.

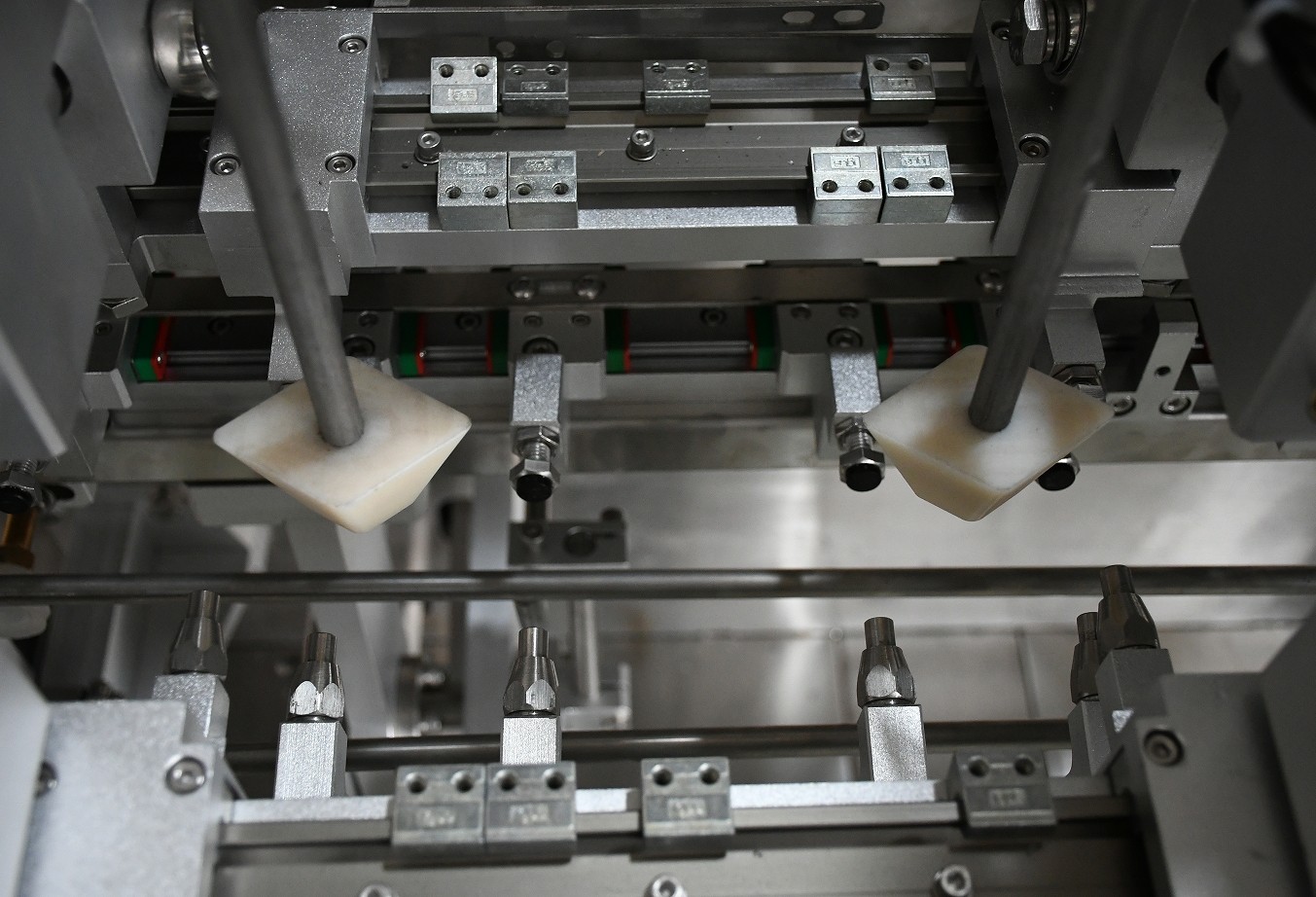

4. Air Blowing Device

It is used to open the bags fully and let the products fill into the bags better.

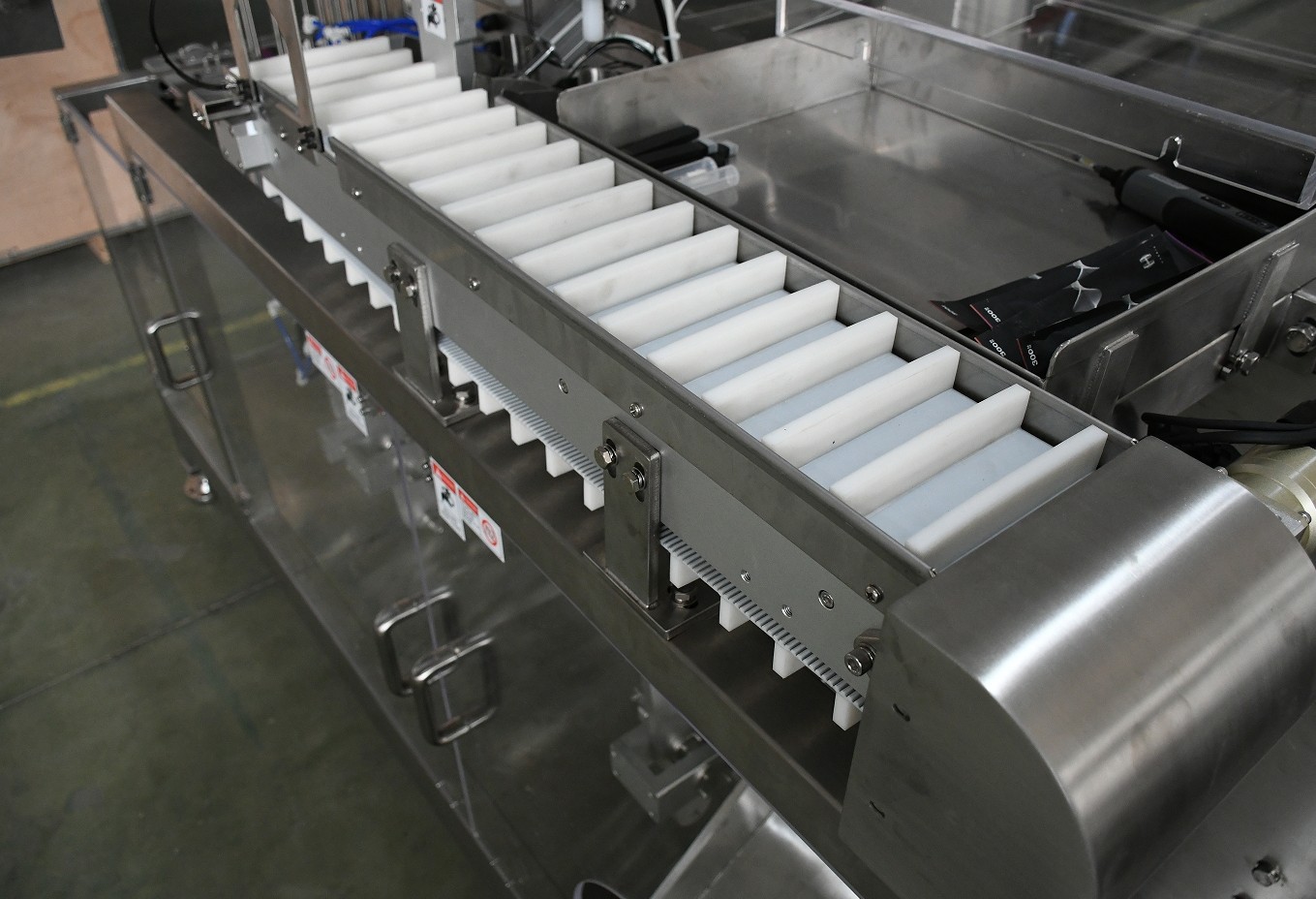

5. Horizontal Conveyor

To put the products on the horizontal conveyor and fill the products to the bags one by one.

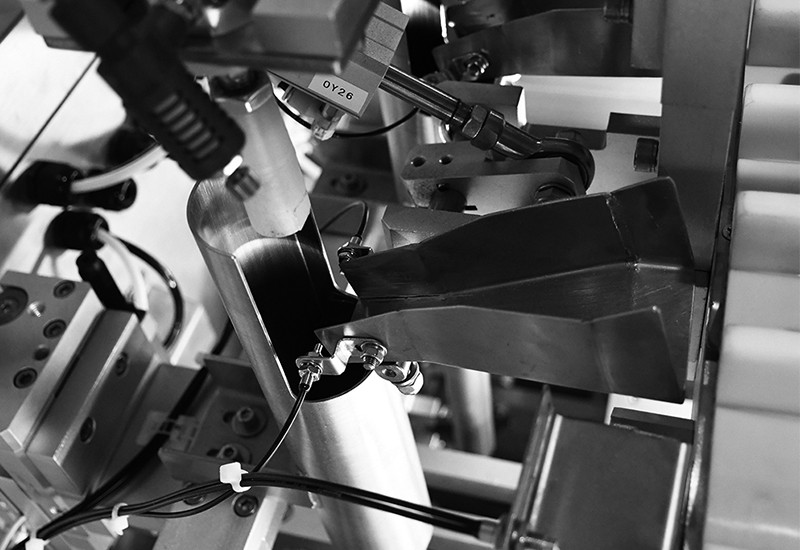

6. Plunger

It is used to push the products into the bags well.

Result

The packing machine was custom made according to the bag width and bag length with duplex stations, the packing speed reaches max 55 bags per minute, and it was installed plunger to make sure the products filled into the bags well.
