Brick-Shaped Paper Bag Packing And Folding Machine For Flour

Brick-Shaped Paper Bag Packing And Folding Machine For Flour

Summary

This packaging solution is specifically designed for brick-shaped paper bag

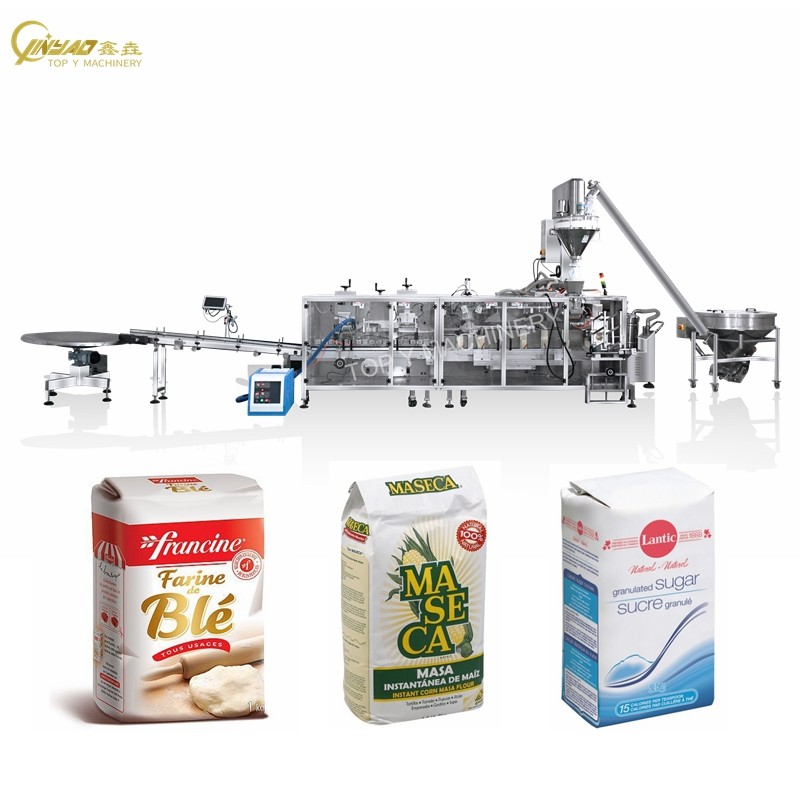

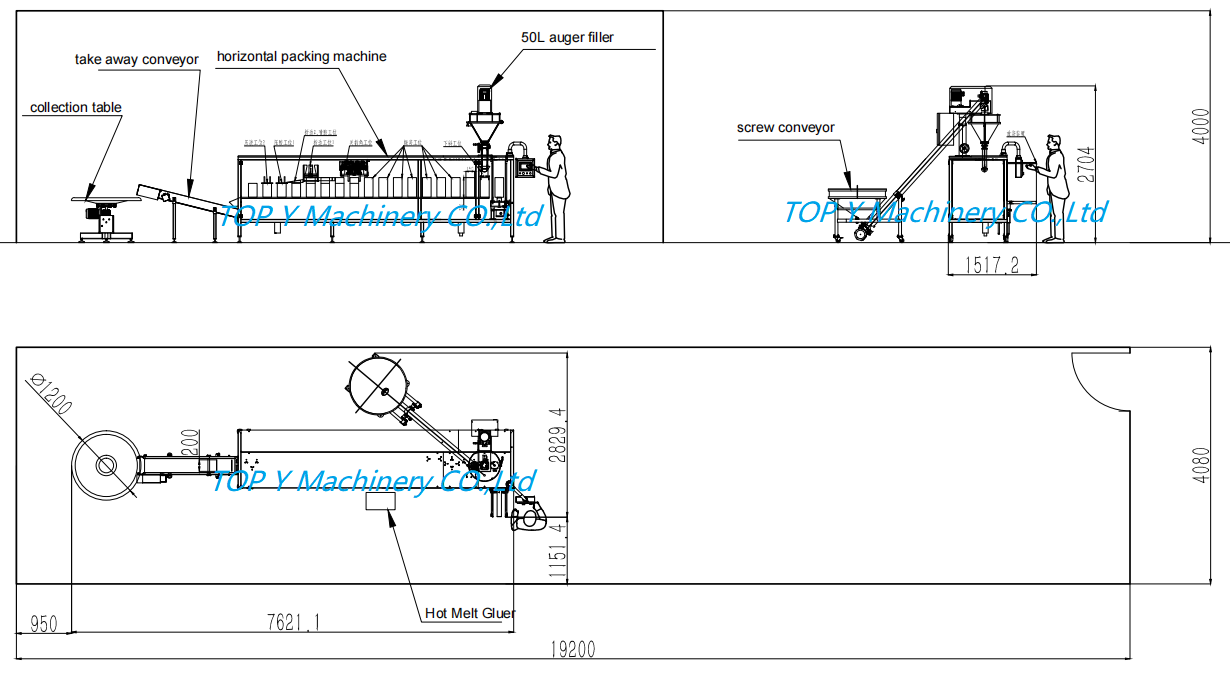

Machine Picture & Layout Drawing
Powder packing system
packing system drawing
Project name: Brick-Shaped Paper Bag Packing And Folding Machine For Flour
Product: Flour
Bag Size: 100*60*280mm/125*80*320mm/150*90*340mm
Pack Weight: 1kg/2kg/3kg
Packing Speed: 10-20 bags/min
Power Supply: 380V/50HZ, Three Phase
Customer Challenge
A. One machine needs to be compatible with 3 bag sizes
B. The workshop dimension is 19.2*4.08m(L*W),  needs to accommodate 2 sets of packing lines
C. Needed sealing type: hot melt sealing
Our Turnkey Packing Solution
We provided a fully automatic horizontal doypack packaging line including:
Auger filler
Horizontal packing machine
Pick up the bag, filling, folding and sealing
Screw conveyor

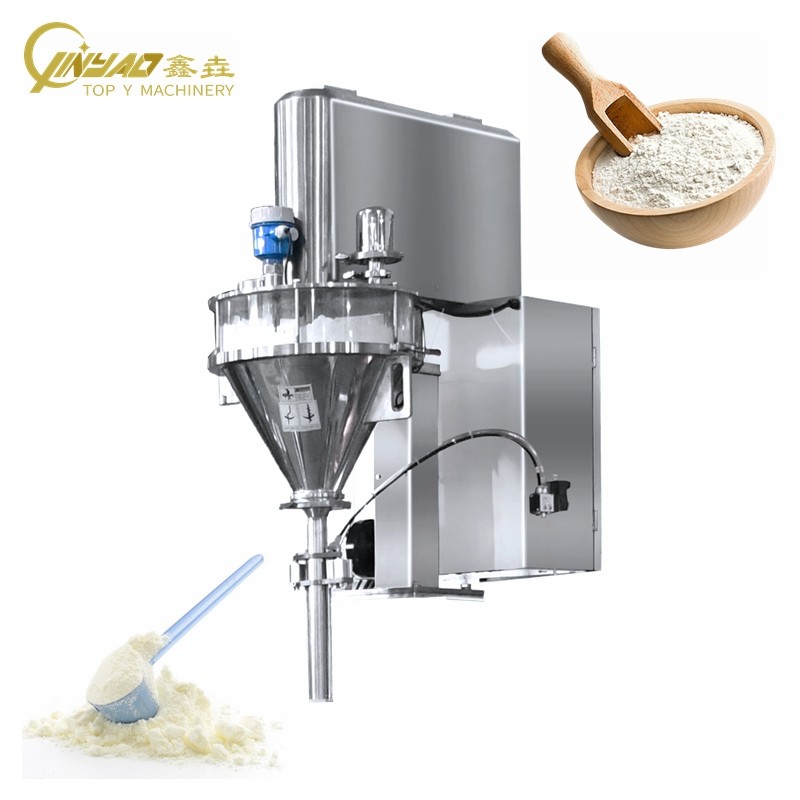

Auger filler
For powder dosing and filling

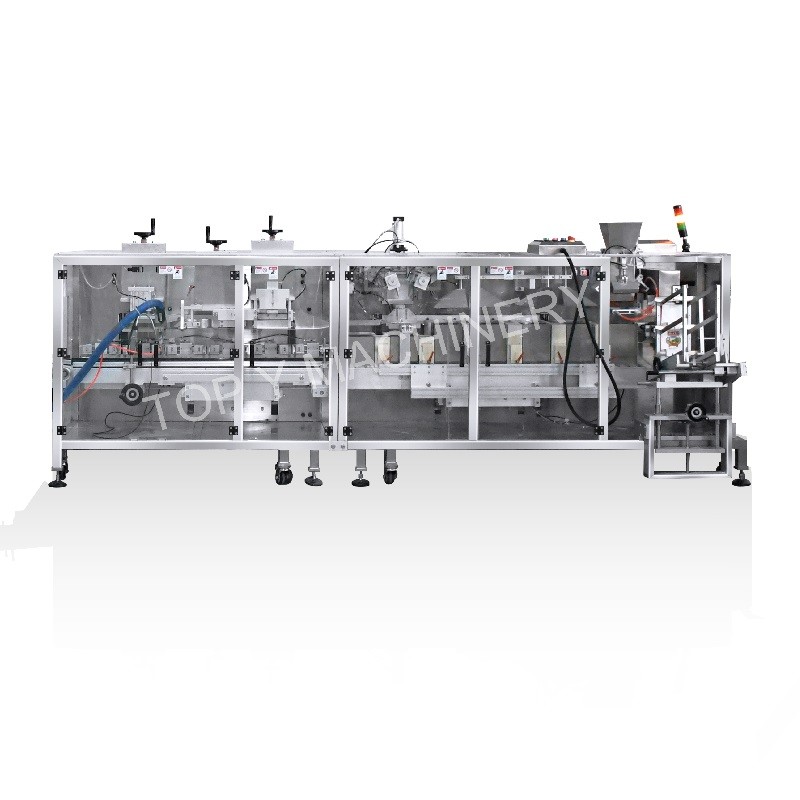

Horizontal packing machine
Screw conveyor
For powder lifting
take away conveyor
Take away conveyor
To take the finished bag out.
metal detector

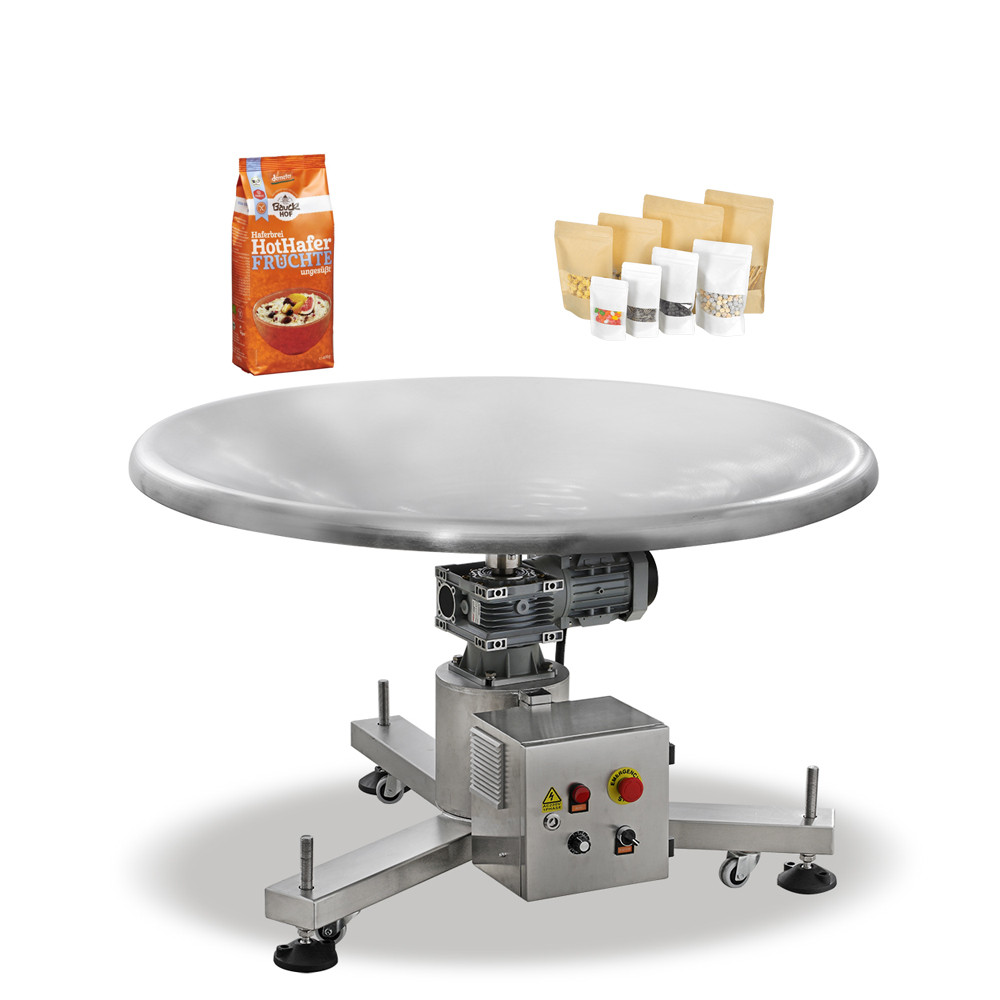

Collection table
To collect the finished bag
colection table

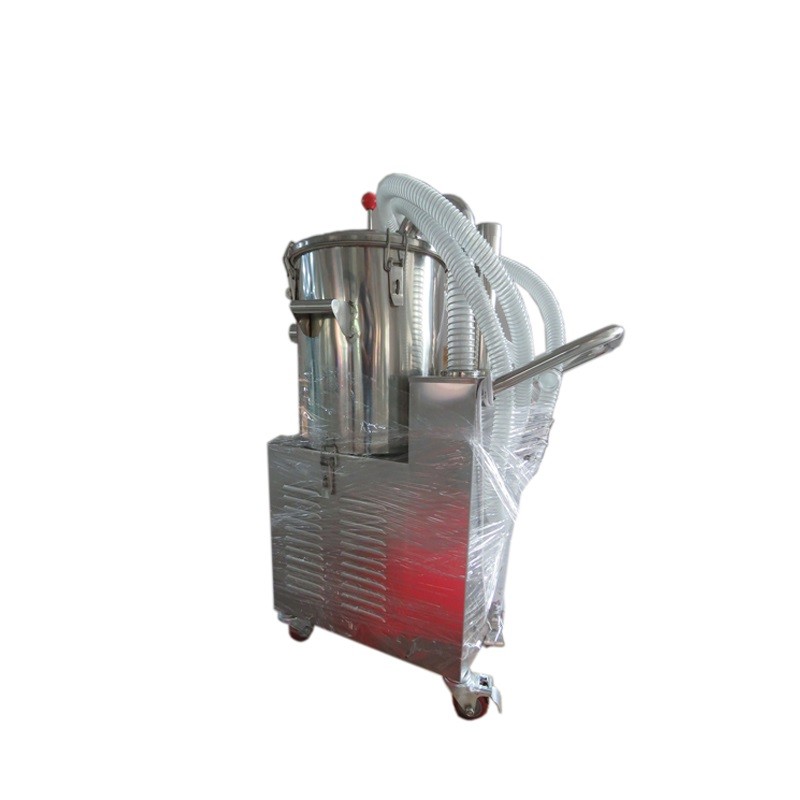

Dust collector
To collect the dust during filling
Key Functions of the Horizontal Packing Machine

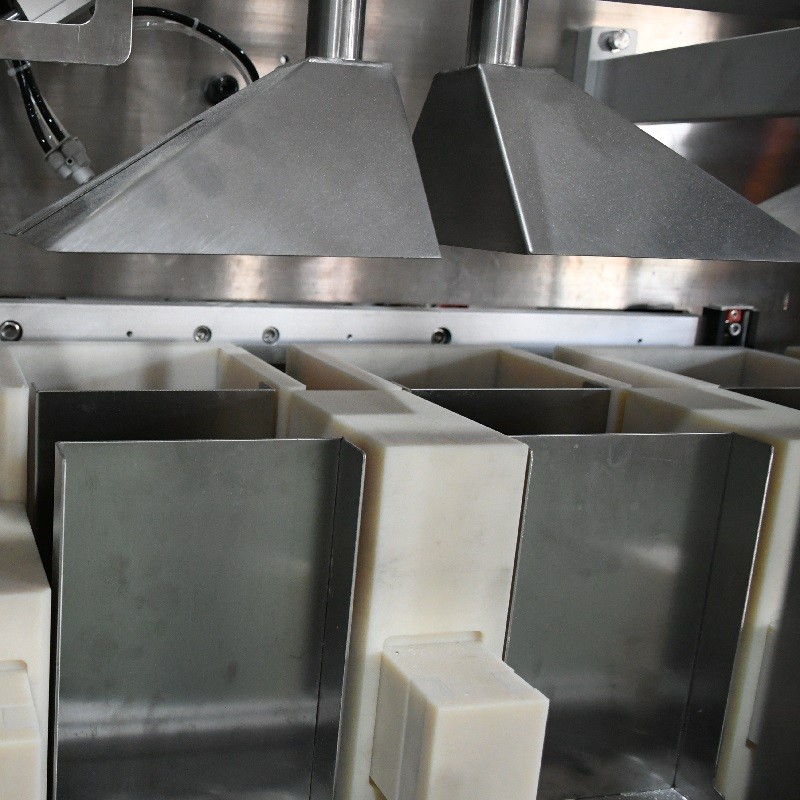

Hopper shaker
1. Bag-Holding Device
Customized according to bag size, each bag size requires 1 set of bag-holding device

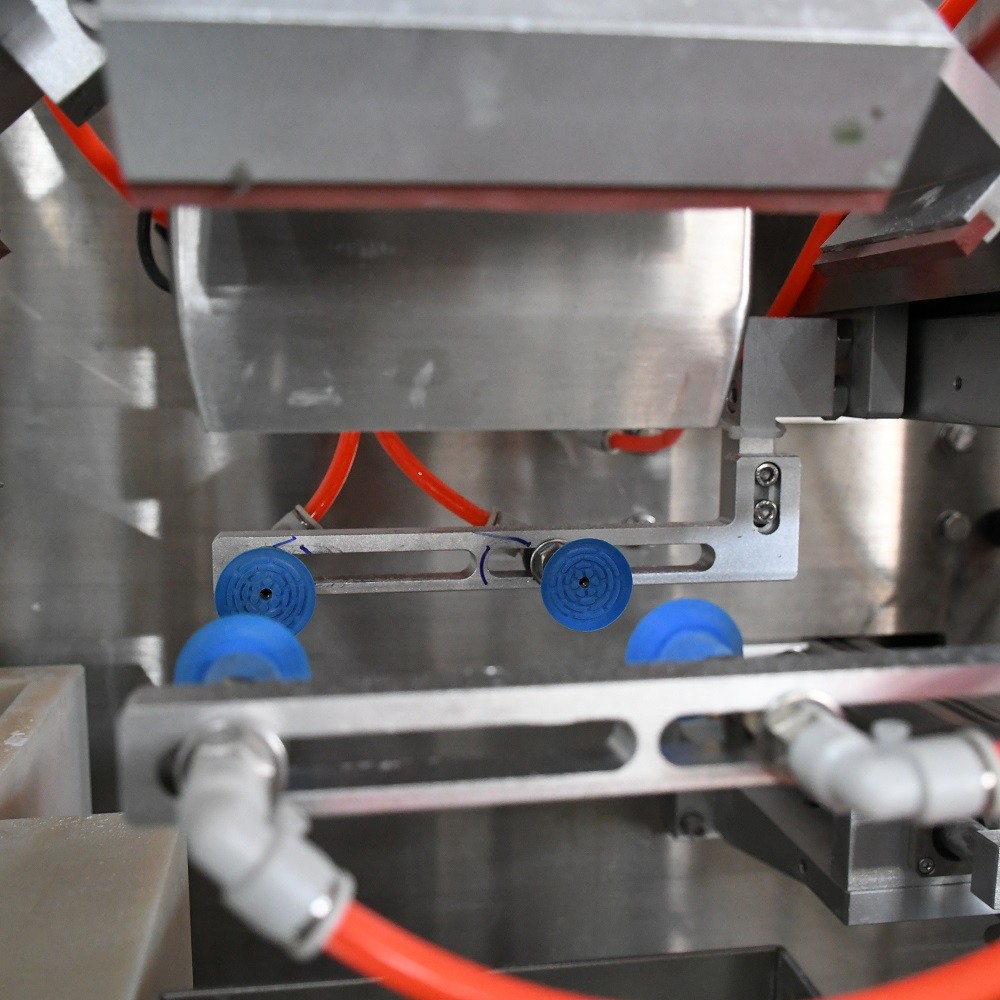

Zipper opener
2. Grip Seal Device
To hold the filling hopper during filling, avoid the dust leaking out
Zipper Closing Device
3. Side Gusset Closing Device
To clost the side gusset part of the bag
4. Bag Folding Device
To fold the bag twice

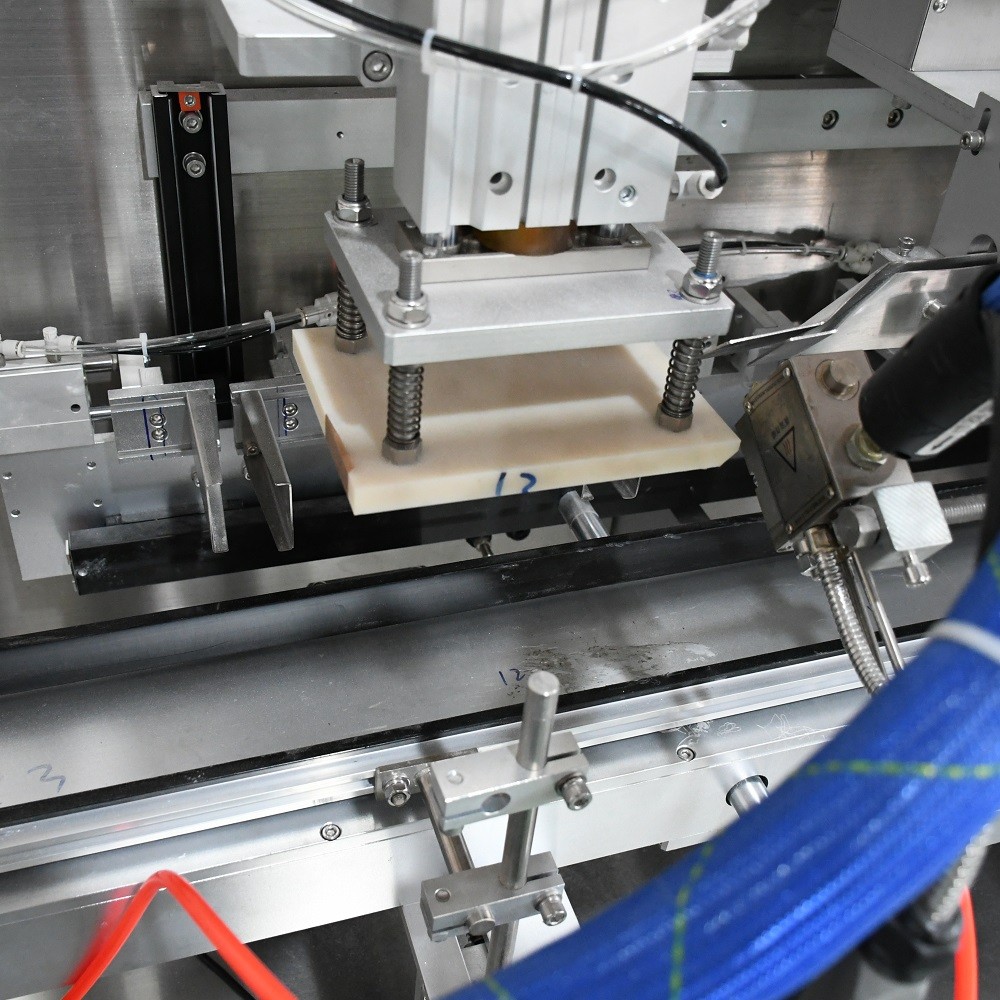

5. Glue Spraying and Bag Pressing Device
To spray the glue on the bag then press to close the bag

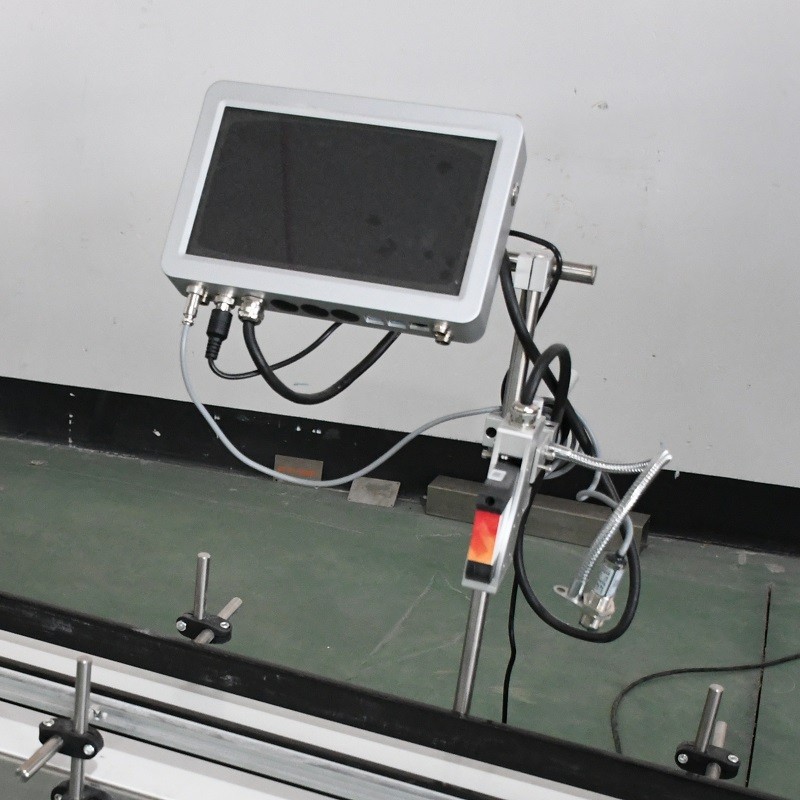

6. Inkjet Printer
To print the date code/batch code on the bag
Result
Our solution overcame several key challenges:

1. Customizable Bag-Holding Device: The machine is designed to accommodate multiple bag sizes, offering flexibility in packaging operations.

2. Flexible System Layout: The system layout can be adjusted to seamlessly integrate with the client's workshop, ensuring space optimization and smooth workflow.

3. Specialized Sealing Equipment: The machine is equipped with hot melt gluer to meet the specific sealing methods requested by the client.
