Summary
This packaging solution is specifically designed for soft gummy candy and fragile freeze dried candy
Gummy Candy and Freeze Dried Candy Packaging Line
- Share
- Issue Time
- 2026/1/17 16:02:52

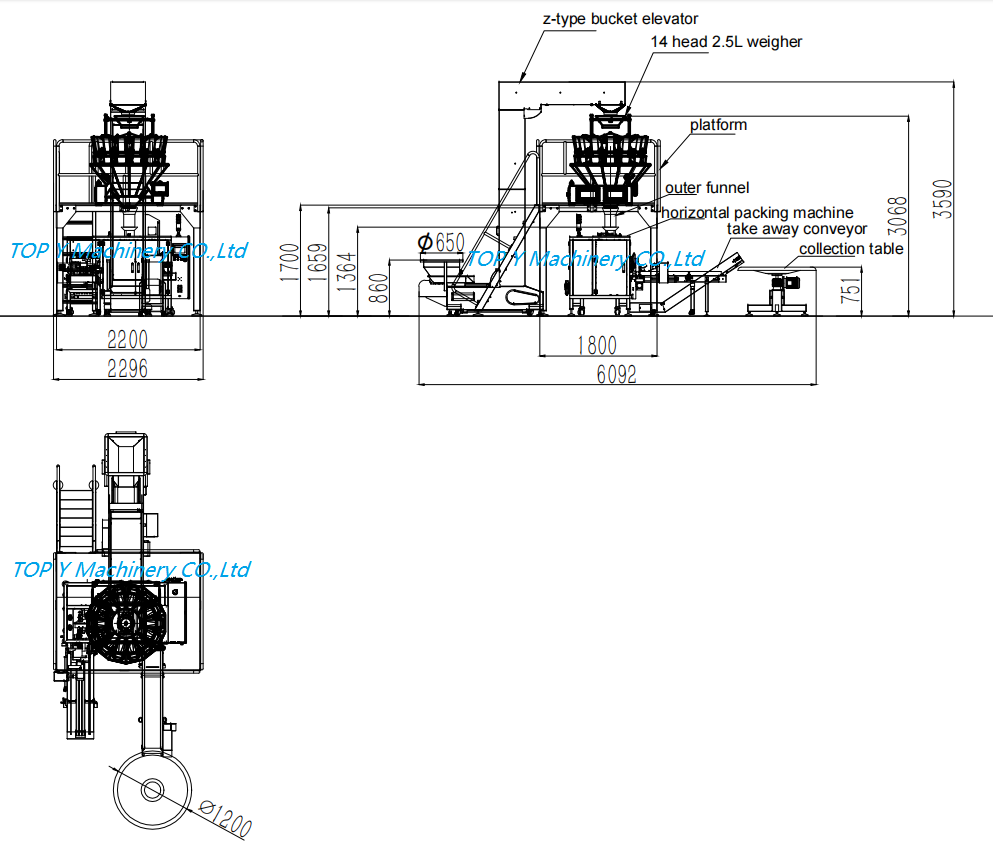

Final picture and drawing

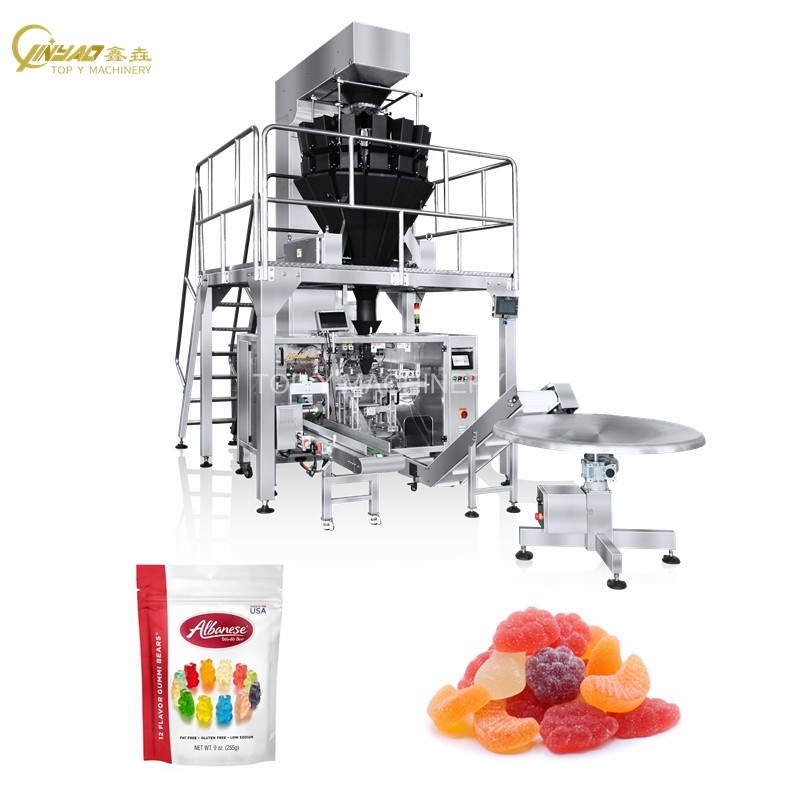

Project name: Gummy Candy and Freeze Dried Candy Packaging Line
Product: soft gummy candy and fragile freeze dried candy
Bag Size: Min. 100 × 145 mm / Max. 240 × 330 mm
Pack Weight: 50–1000 g
Packing Speed: 10–18 bags/min
Power Supply: 380V, 3-phase, 50Hz
Customer Challenge
FIJI KAVA powder is a fine, light and dusty powder, which is easy to stick to the hopper and escape from the zipper area during filling. The customer required stable weighing accuracy, clean sealing, automatic zipper opening/closing, and a complete dust-free packaging process for medium speed production.
Our Turnkey Packing Solution
We provided a fully automatic horizontal doypack packaging line including:
Auger filler
Use for weighting KAVA powder.
Screw conveyor
To dosing into auger filler.
Horizontal packing machine
Pick up bag, filling, sealing automatically.
Take away conveyor
To take the sealed bag out.
Metal detector
To detect the metal after sealed the bag.
Collection table
To collect the sealed bag.
Key Functions of the Horizontal Packing Machine
1. Pneumatic Hopper Shaker
Installed on the filling hopper to prevent powder from sticking to the wall, ensuring smooth and stable feeding.
2. Automatic Zipper Opener
Precisely opens the zipper before filling, guaranteeing smooth powder filling into the bag.
3. Zipper Closing Device
Automatically closes the zipper before final heat sealing to ensure perfect package integrity.
4. Hot Ribbon Date Printer
Prints production date and batch code, maximum 2 lines, 11 characters per line, clear and durable.
5. Grip Seal Protection
Special grip seal structure prevents powder from escaping during filling, keeping the zipper area clean.
6. Bag Tapper Device
Taps the bag during filling so the powder settles evenly, improving filling accuracy and sealing quality.
Result
After installation and commissioning, the line achieved stable operation at 10–18 bags per minute with high accuracy and clean sealing. The dust collector effectively reduced powder leakage, and the zipper function worked reliably for all bag sizes from 50 g to 1 kg.
This customized solution successfully helped the customer improve production efficiency, reduce material loss, and ensure premium packaging quality for their FIJI KAVA powder products.
