Summary
This project provides a complete automatic packaging solution for milk powder,the packing machine integrates with auger filler, vacuum loader, takeaway conveyor, turning table and scoop feeder, the packing speed is 15-20 bags per minute.
Milk Powder Packing Machine System With Vacuum Loader And Scoop Feeder
- Share
- Issue Time
- 2026/1/17 14:17:10

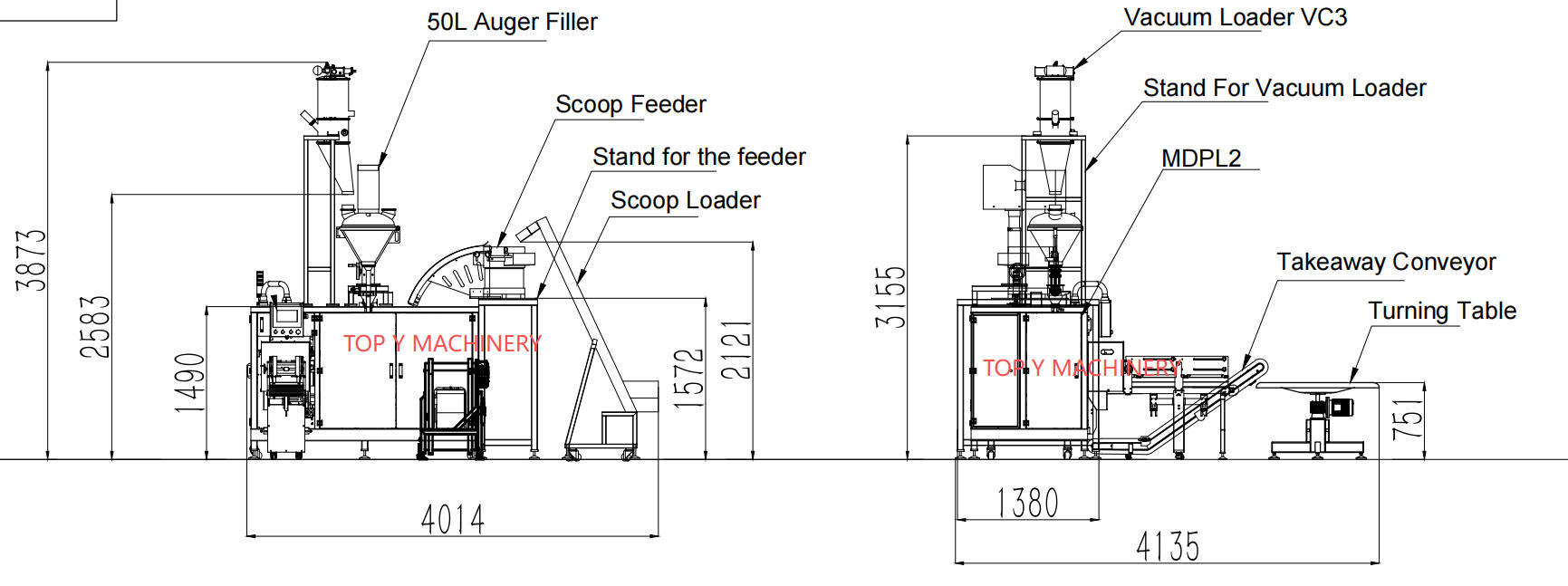

Machine picture and layout drawing
Project name:Milk Powder Automatic Packaging Line
Product: Milk Powder
Bag Size: 127x202mm，102x170mm, 70x226mm,205x305mm
Net Weight: 85g,226g,453g,1700g
Packing Speed: 15–20 bags/min
Power Supply: 220V,60Hz,Single Phase
Customer Challenge
A. The customer required the packing machine with smaller layout.
B. The scoop needed to fill into the smallest bags as well.
C. The packing speed should to be at least 15 bags per minute.
Our Turnkey Packing Solution
We provided a fully automatic horizontal doypack packaging line including:
Auger filler
To weigh and fill the powder into the bags
Vacuum Loader
To convey the products to the auger filler.
Horizontal packing machine
Pick up bag, filling, sealing automatically.

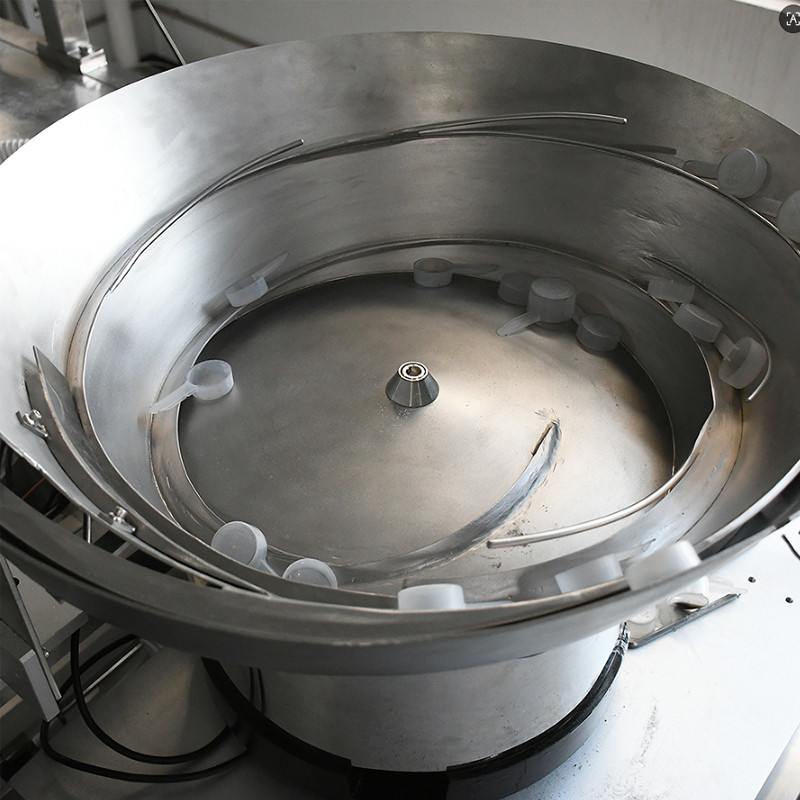

Scoop Feeder
To dispense the scoop one by one to the bag
Takeaway Conveyor
To collect the finished package from the packing machine

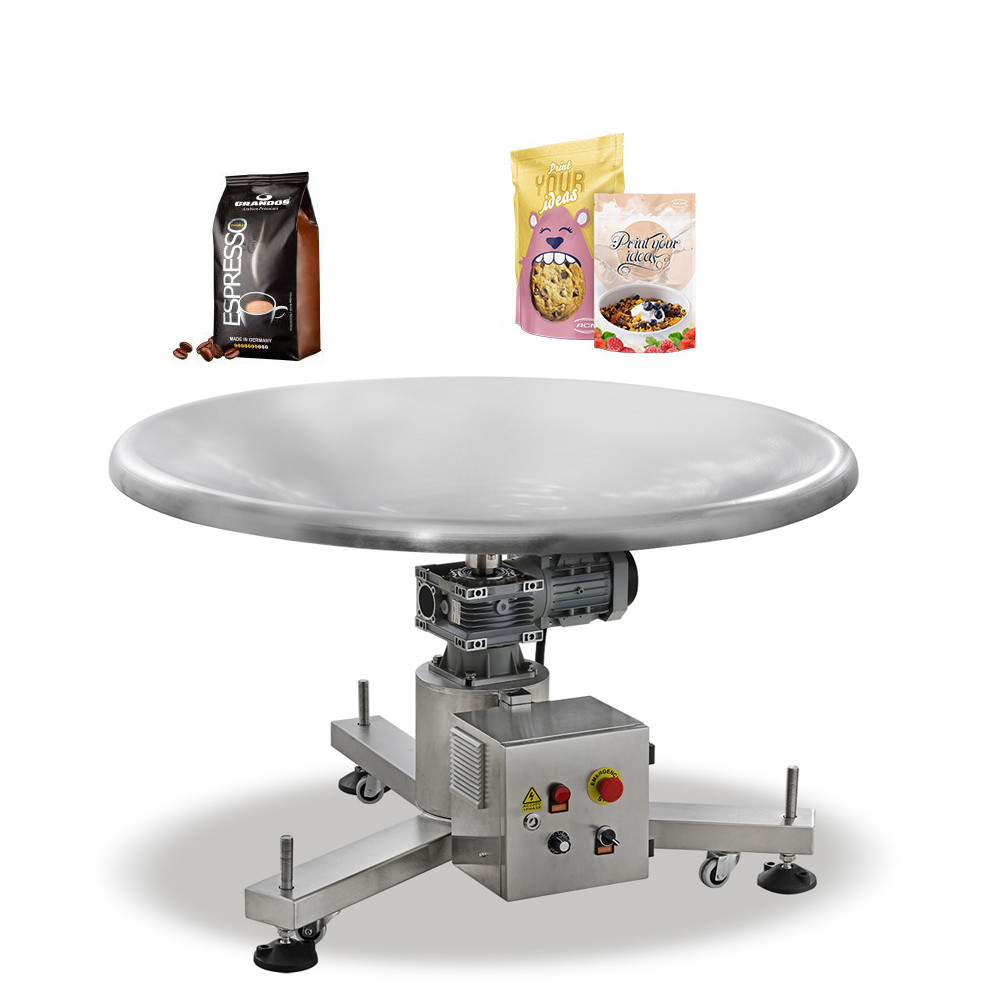

Collection table
To collect the sealed bag.
Key Functions of the Horizontal Packing Machine
1. Pneumatic Hopper Shaker
Installed on the filling hopper to prevent powder from sticking to the wall, ensuring smooth and stable feeding.
2. Automatic Zipper Opener
Precisely opens the zipper before filling, guaranteeing smooth powder filling into the bag.
3. Zipper Closing Device
Automatically closes the zipper before final heat sealing to ensure perfect package integrity.
4. Hot Ribbon Date Printer
Prints production date and batch code, maximum 2 lines, 11 characters per line, clear and durable.

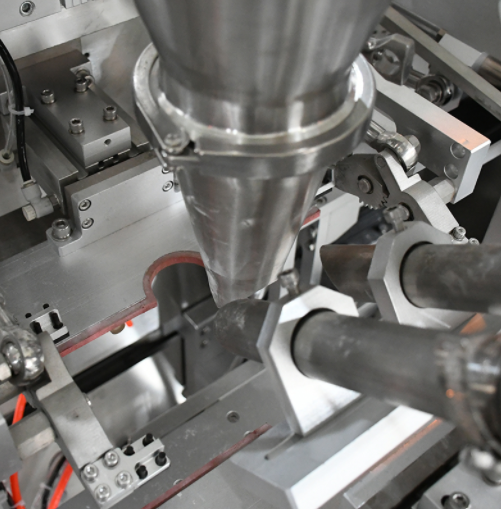

5. Grip Seal Protection
Special grip seal structure prevents powder from escaping during filling, keeping the zipper area clean.

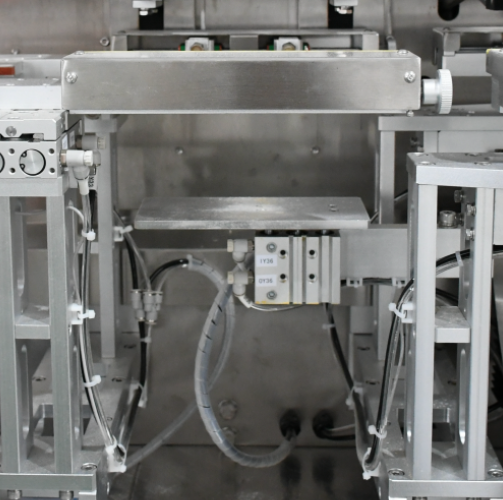

6. Bag Tapper Device
Taps the bag during filling so the powder settles evenly, improving filling accuracy and sealing quality.
Result
According to the layout of customer's workshop, we recommend to use the vacuum loader instead of screw conveyor, and the smallest bag width is 102 mm, the standard design is very difficult to fill the scoop into such small bag width, so we customized to add a filling station which is specialized for scoop, the performance is very good and the final speed is 15-20 bags per minute, the customer was very happy for the packing machine system.
