Top Y High Precision Tablet Capsule Counting Machine Bottle Filling Machine Granule Filling Machine
- Model
- TOPY-VM
Item specifics
- packaging type
- Cans, Bottles, Bags, Jar, Other
- key selling points
- Energy Saving
- core components
- Motor, PLC, Engine
- machinery test report
- Provided
- video outgoing-inspection
- Provided
- Product name
- Granule filling machine
- Filling products
- capsule, tablet, pill, gummy candy, etc
Review
Description

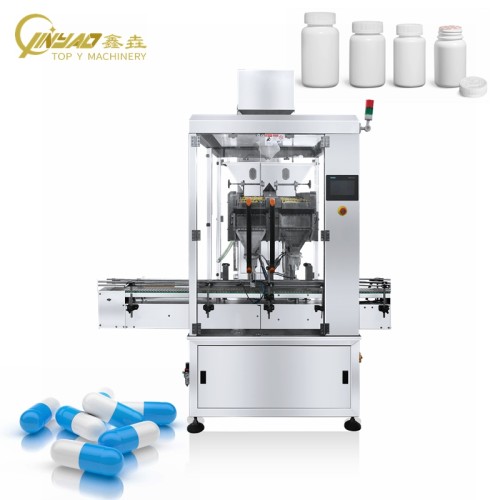

Top Y High Precision Tablet Capsule Counting Machine Bottle Filling Machine Granule Filling Machine
Specification
| Machine Model | 16 lanes counting machine | ||
| Applicable bottle type | round and square plastic bottles | ||
| Filling objects | 00~5# capsules, soft capsules, Φ5.5~22 plain tablets, special-shaped tablets, sugar-coated tablets, Φ3~22 pill | ||
Production capacity | 40~60 bottles/minute (related to bottle specifications, filling volume, and drug specifications) | ||
Bottle volume setting range | 1-9999 | ||
Power supply and power | Three phase 380V or single phase 220V50-60Hz(can be customized) | ||
Accuracy | >99.8% (better than industry standards) | ||
Air source | 0.6Mpa | ||
Machine Dimension | 1760*1600*1650mm | ||
Working Principle

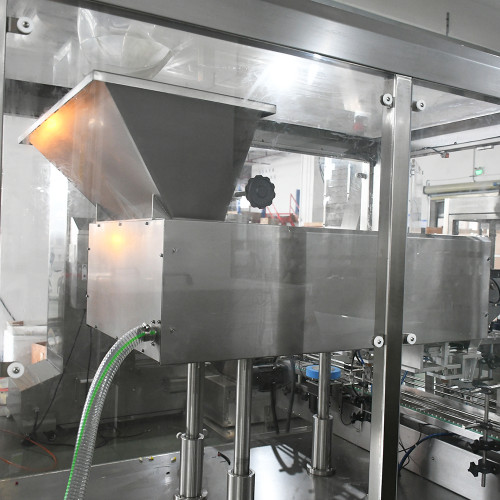

The bottle blocking mechanism blocks the bottles sent by the previous device at the bottling position, waiting for filling. The pills enter the medicine bin in an orderly manner through the vibration of the feeding corrugated plate. The counting photoelectric sensor is installed on the medicine bin. The pills falling into the medicine bin are quantitatively counted by the photoelectric counting sensor and then put into the bottle at the bottling position.
Main features
(1) Strong compatibility, can count and bottle tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pills and other solid preparations or solid particles;

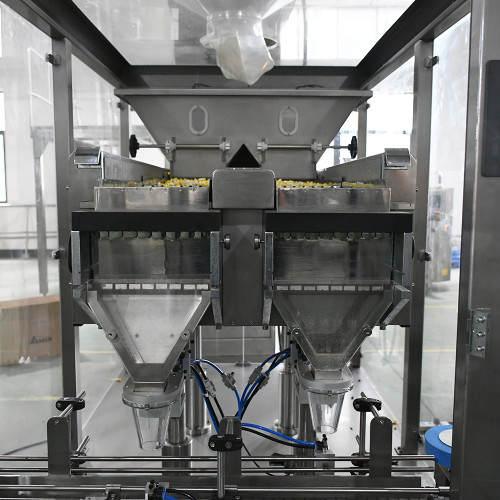

(2) Vibration feeding: 16-channel vibration feeding, unique patented flip filling mechanism feeding, feeding and discharging are uniform and stable without damaging the medicine;
(3) High dust resistance: Adopting the company's original high dust resistance photoelectric sensing technology, it can work stably under high dust conditions;
(4) Accurate counting: Photoelectric sensor counts automatically, and the bottling error is less than the national standard;
(5) The special structure of the nozzle can prevent drug blockage, and the medicine bottle with a small bottle mouth can also be bottled quickly;
(6) High degree of intelligence, with multiple detection and alarm control functions such as no counting without bottle and fault self-detection;
(7) Functional support: The photoelectric sensor automatically detects the lack of bottles and automatically shuts down;

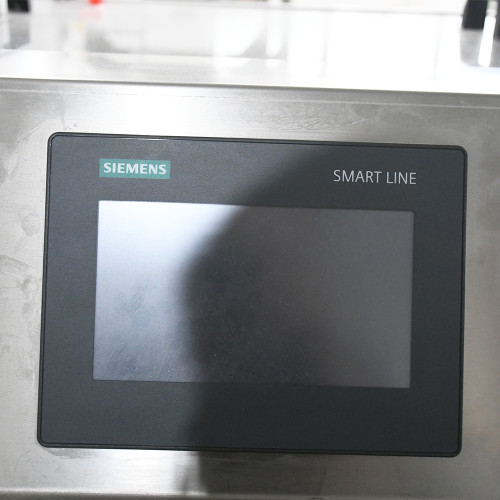

(8) Simple operation: It adopts intelligent design and various operating parameters can be set according to needs;
(9) Easy maintenance: Operators only need simple training to operate, and disassembly, cleaning and replacement of parts are simple and convenient without tools;
(10) Sealed and dustproof: It is equipped with a dust removal box to reduce dust pollution.
