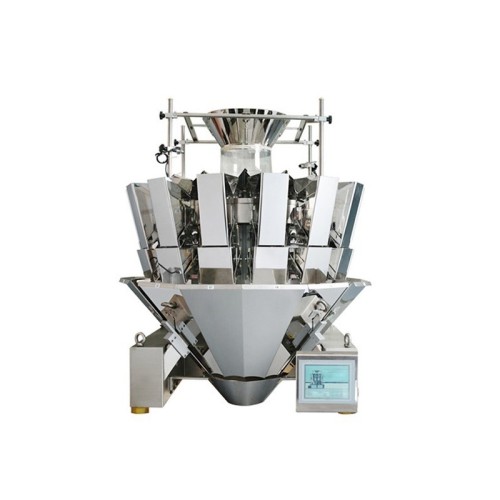

High Precision 10 Head 14 Head Combination Scale Granule Products Multihead Weighing Machine Multihead Weigher
- Model
- TOPY-VM
Item specifics
- Application
- nuts, snacks, dried fruit, hardware, etc
- Weight bucket
- 0.2-5L
- core components
- Motor, PLC, Engine
- machinery test report
- Provided
- video outgoing-inspection
- Provided
- Product name
- Mutilhead Weigher
- Material
- SS#304
Review
Description
High Precision 10 Head 14 Head Combination Scale Granule Products Multihead Weighing Machine Multihead Weigher
Application
It is mainly apply in automatic weighing various granular products in food or non-food industries, such as potato chips, nuts, frozen food, vegetable, sea food, nail, etc.
Specification
| Multihead Weigher Parameter | |||
| Model | TOPY- VW10 | ||
Max. Cap.(g) | 10-800g | 800-1500g | |
| Weighing Accuracy(g) | 0.1-1.5g | 0.5-2g | |
Max. Weighing Speed | 65WPM | 45WPM | |
Hopper Volume | 1.6L | 2.5L | |
Control Panel | 10.4"LCD Keypad Screen/Touch Screen | ||
Options | Dimple Plate/Timing Hopper/Printer/Rotary Top Cone | ||
Driving System | Step Motor | ||
Power Requirements | 220V / 1000W / 50/60HZ / 10A | ||
Packing Dimension(mm) | 1620 (L)x1100 (W)x1100 (H) | ||
Gross WGT | 420KG | ||
Features
IP65 waterproof, use water cleaning directly, save time while cleaning;
Modular control system, more stability and lower maintenance fees;
Production records can be checked at anytime or download to PC;
Load cell or photo sensor checking to satisfy different requirements;
Preset stagger dump function to stop blockage;
Design linear feeder pan deeply to stop small granule products leaking out;
Refer to product features, select automatic or manual adjust feeding amplitude;
Food contact parts disassembling without tools, which is easier to clean;
Multi-languages touch screen for various clients, English, French, Spanish, etc;
Different Combination with Packing Machine/Filling Machine
Package
