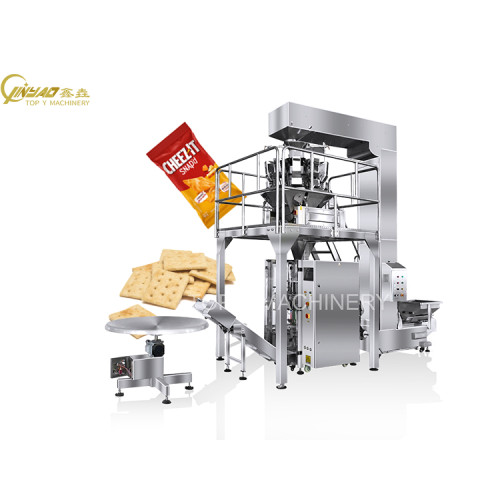

Automatic Fried Onions Frozen Fries Corn Puffs Popcorn Vertical Industrial Packing Machine
- Model
- VFFS
Item specifics
- Name
- VFFS Packing Machine
- function
- FILLING, Sealing, Packing
- core components
- Motor, PLC, Gear, Bearing, Temperature Control Mod
- After-sales Service Provided
- Engineers available to service machinery overseas
- Machine Material
- SS#304 or Carbon/Mild Steel
- Film Changeover
- Simple and fast bag sizes with one set of former
- Software Operation
- Program storage and retrieval function
- Bags or Products Changeover
- parameters setting on the touch screen
- Controller System
- PLC and touch screen with simple manu-based
- Machine Material
- SS#304 or Carbon/Mild Steel
- brand name
- TOP Y MACHINERY
Review
Description
Automatic Fried Onions Frozen Fries Corn Puffs Popcorn Vertical Industrial Packing Machine
Function and characteristics:
1. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
2.The width of the bags could be adjusted by electrical motor.
3. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
4.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Product Description
Granules Weighing and Packing Solution
Combine with the mutilhead weigher, this system can handle various granules, like snacks, frozen food, nuts, etc.
Weighing accuracy: 0.1-1.5g
Speed: 25-40bags/min
(also we have double servo motors driven machine can reach up to 60bags/min)
Machine material: Full SS#304(food grade)
Bag dimension: adjustable
Bag material: rolling film(single layer PE film/ laminated film)
The functions of the packing system mainly are conveying, weighing, bag forming, filling and bag sealing. The flexibility of it allows you to customize your machine to meet your individual requirements!
Specification Of VFFS Packing Machine | |||||||
Model | TOPY-VP320 | TOPY-VP420 | TOPY-VP520 | TOPY-VP620 | TOPY-VP730 | TOPY-VP820 | TOPY-VP1050 |
Bag Size | (L)30-220mm
(W)50-150mm | (L)70-300mm
(W)60-200mm | (L)80-350mm
(W)100-250mm | (L)80-350mm
(W)100-250mm | (L)200-400mm
(W)140-350mm | (L)150-500mm
(W)250-400mm | (L)200-500mm
(W)140-500mm |
Bag Speed (standard machine) | 10- 60bags/min | 10- 70bags/min | 15- 60bags/min | 15- 60bags/min | 10- 50bags/min | 5-30bags/min | 2-30bags/min |
Bag Speed (High-speed machine) | Max 100 bags/min | Max 100 bags/min | Max 100
bags/min | Max 100
bags/min | Max 100
bags/min | Max 100
bags/min | Max 100
bags/min |
Film Width | 120-320mm | 120-420mm | 220-520mm | 220-620mm | 300-720mm | 340-820mm | 300-1050mm |
Film Thickness | 0.03-0.1mm | 0.03-0.1mm | 0.04-0.10mm | 0.04-0.1mm | 0.05-0.12mm | 0.06-0.15mm | 0.07-0.20mm |
Air Consumption | 0.7Mps
0.5m3/min | 0.7Mps 0.5m3/min | 0.8Mps 0.4m3/min | 0.8Mps 0.4m3/min | 0.8Mps 0.5m3/min | 0.6Mps 0.7m3/min | 0.8Mps 0.7m3/min |
Dimension | 1300*880*1150 | 1530*970*1600 | 1430*1200*1700 | 1430*1200*1700 | 1340*1580*1950 | 1500*1680*2100 | 1740*2080*2500 |
Weight | 250kg | 450kg | 680kg | 700kg | 800kg | 1000kg | 1200kg |
Power Supply | 2.2kw, 220V
50/60HZ | 2.2kw, 220V 50/60HZ | 2.5kw, 220V 50/60HZ | 2.5kw, 220V 50/60HZ | 2.5kw, 220V 50/60HZ | 3.0kw, 220V 50/60HZ | 3.0kw, 220V 50/60HZ |
The Optional Device On The VFFS Packing Machine
Please Inform The Bag Type You Need
VFFS Packing Machine For Different Kinds Of Product
VFFS packing machine,the machine for your current and future needs! The functions of the packing system mainly are conveying, weighing, bag forming, filling and bag sealing. The flexibility of it allows you to customize your machine to meet your individual requirements!
VFFS packing machine is suitable for all kinds of the bags made of plastic roll film, such as pillow bag, side gusset bag, quad sealing bag and so on.
Besides, by connecting with different weighing equipment, the packing system can handle various products, such as powder, snacks, dried vegetable or fruit, puffed food, liquid sauce, beverage, etc.
