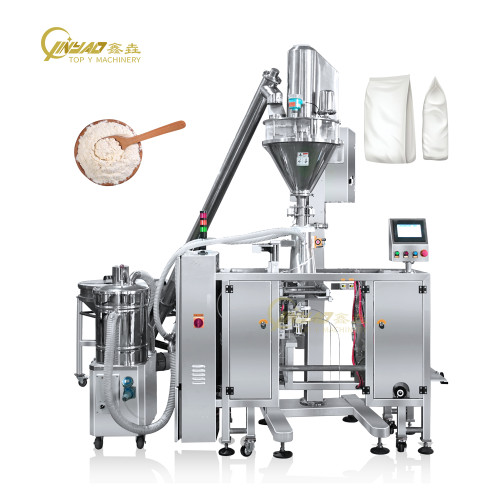

Top Y 25g 1000g 5kg Baking Powder Flour Bag Brick Bag Paper Bag Filling and Sealing Packing Machine
- Model
- TOPY-MDP1
Item specifics
- Machine name
- Powder Doypack machine
- Bag width
- 70-280mm
- Bag length
- 80-320mm
- Bag type
- 4 side seal, 3 side seal, stand up zipper pouch
- Voltage
- 110/220/240/380/415 V
- Pneumatic parts
- Eurovac Vacuum Pump from Taiwan
- Warranty
- 2 years
Review
Description
Top Y 25g 1000g 5kg Baking Powder Flour Bag Brick Bag Paper Bag Filling and Sealing Packing Machine
Model No. | TOPY-MDP1 | TOPY-MDP2 |
Bag Width | 70-280mm | 70-280mm |
Bag Length | 80-320mm | 80-440mm |
Bag Type | Stand-up bag, pillow bag | |
Power Supply | 110V/220V/380V/415V, 50/60HZ | |
Pneumatic Parts | EUROVAC vacuum pump, Pneumatic component Airtac from Taiwan | |
MDP for bags without closed zipper or within Ziplock
MDP-series, The Japan Mitsubishi PLC control, with Delta touch screen interface system, easy operation, convenient operation, variable speed.
Doypack machine is suitable for all kinds of the premade bags, such as pillow bag, 3-side, 4-side and 8-side quad seal bags (box pouch), craft bags and spout bags and so ona
Function and Characteristics:
1. Easy to operate，adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system.
2. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm。
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easy operation and save time.
5. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
6.Use the plastic bearing for liquid products to resist the rust.
7. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
8. With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
9. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
