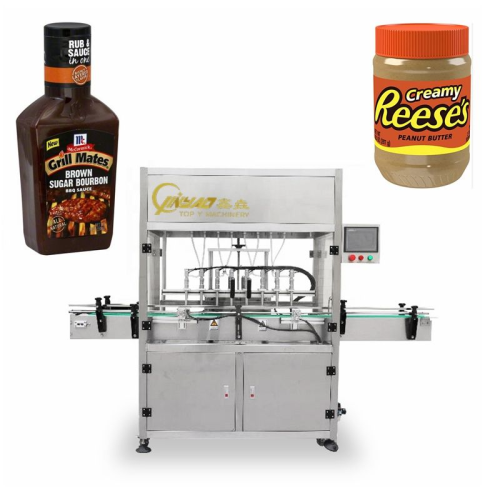

Automatic 6 Head Liquid Detergent Viscosity Ointment Thick Paste Shampoo Ketchup Honey Filling Machine
- Model
- TOPY-FM
Item specifics
- packaging type
- Cans, Bottles, Bags, Jar, Other
- key selling points
- Energy Saving
- core components
- Motor, PLC, Engine
- machinery test report
- Provided
- video outgoing-inspection
- Provided
- Product name
- Paste filling machine
- Filling product
- Peanut butter, spice paste etc
Review
Description
Automatic 6 Head Liquid Detergent Viscosity Ointment Thick Paste Shampoo Ketchup Honey Filling Machine
Specification
| 8 head liquid filling machine for bottles | |||
| Model | TOPY-8H | Capacity | 2000B/H |
| Dimension | 2000(L)x1100(W)x2200(H)mm | Filling error | ±0.5% |
| Filling head | 8 | Power | 1.1KW |
Filling range | 100-1000ml | Air source | 0.6-0.8Mpa clean and stable air source |
| Capping Machine Parameter | |||
| Power Supply | AC220V, 50/60HZ, 80W | ||
| Air Pressure Range | 4-6kg/cm2 | ||
Capping Height | 50-300mm | ||
Capping Rate | 0-40bottles/min. | ||
Capping Range/Torque | 20-50mm 4-8kgf/cm | ||
Dimension Main Frame | 565×467×671mm | ||
| Packed Dimensions | 655×567×75mm | ||
Weight | 44kgs | ||
| Automatic Sealing Machine Parameter | |||
| Rated Voltage | AC 220V, 50/60HZ | Sealing Speed | 0-300bottles per Minute |
| Max Power | 3000W | Size for Main Body | 1800x420x1450mm |
Seal Diameter | Φ15-120MM | Host Weight | 75kgs |
| Application | Various bottle types | Cooling Mode | Water- Cooling |
Packed Size | 1315x702x664mm | Appearance | Stainless Steel |
