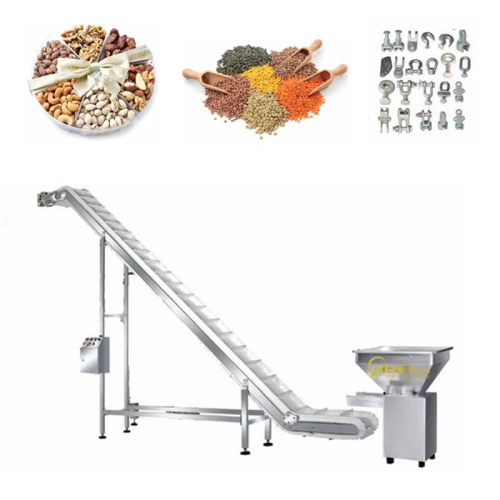

Flexible Acclivitous Baffle PU PVC Conveyor Food Transfer Grade Chips Grain Belt Incline Conveyor
- Model
- TOPY-AC1
Item specifics
- Product Name
- Belt Incline Conveyor
- Application
- Transfer Materials
- Power supply
- 0.75KW
- Material
- 304/316L
- Feature
- High Efficiency
- Belt Material
- Stainless Steel, Steel Alloy, Rubber, PVC
- frequency inverter
- Schneider, Panasonic, Delta
Review
Description
Flexible Acclivitous Baffle PU PVC Conveyor Food Transfer Grade Chips Grain Belt Incline Conveyor
Feature
Speed: adjustable
Frame: Full SS#304(food grade)
Belt: PVC belt, PU belt, Modular plastic belt
Component:
1. Acclivitous Conveyor: lift the material to high place
2.Vibratory Feeder(optional): dispense the material to conveyor
Application:
All kinds of granules, such as hardware, grain, snack, nuts, dried fruit, frozen food, etc.
Product Parameters

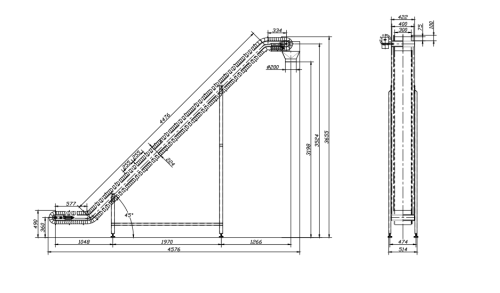

Specification
| Model | TOPY-AC1 Acclivitous Conveyor | ||
| Material | #304 Stainless Steel | ||
| Capacity | 4-6.5m3/H | ||
| Height | 3520mm(standard) | ||
Package dimension | 6090mm(L)*660mm(W)*650mm(H) | ||
Machine weight | 600KG | ||
Machine weight | AC 220V single phase or AC 380V , three phase.50Hz | ||
Power | 1.1kw |
Packing Solution
The conveyor is compatible with various production lines and packing machines
A. Semi-automatic Weighing and Packing Solution
Combine with linear weigher and sealing machine
B. Automatic Weighing and Packing Solution
Combine with automatic packing machine and weigher
