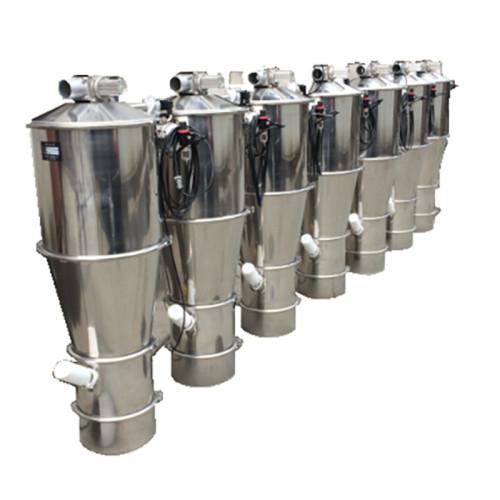

TOP Y Powder Small Granule Conveyor Hopper Vacuum Feeding Machine Coffee Conveyor Vacuum Loader
- Model
- TOPY-VC
Item specifics
- Product Name
- Vacuum Loader
- Application
- Transfer Powder and Granule
- Material
- 304/316L
- Feature
- High Efficiency
- Belt Material
- Stainless Steel
Review
Description
TOP Y Powder Small Granule Conveyor Hopper Vacuum Feeding Machine Coffee Conveyor Vacuum Loader
Feature
Air drive vacuum loader is used the air compress air through the vacuum maker get the sure
vacuum to transfer the material. The mechanical vacuum pump is no need. The machinery
structure is simple, Cubage is small, avoid repair, low noise. Control is convenient, clear up
the material static and covers the GMP standard. Vacuum maker get the pure vacuum. make the transfer material avoid the separate layer, guarantee the material is homogeneous. So the machine is first choice to tablet press, capsule filling machine, dry granulator, packing
machine, pulverizer and vibration sieve etc.
When the compress air supply to the vacuum maker. It produces the negative pressure
come into being the vacuum airflow. The material is absorbed inbreathe the material jaws.
form air flow, through the inbreathe material jaws to the material storehouse of the material feeder. The filter separates the material and air. When the material storehouse is full, the controller shut power. The vacuum stop working.
Same time the gate of material storehouse open. The material fall into the feeder of the
relate machine. Then the compress air through the pulse clean the filter. Waiting for the time
coming or the get the signal form the material level sensor, the feeder restart.
Specification
| Model | Production Capacity | Air Consumption | Hopper Volume | Overall Size |
| TOPY-VC1 | 50-350kgs | 180L/m | 1.1L | Diameter 140x560mm |
| TOPY-VC2 | 100-700kgs | 360L/m | 6L | Diameter 213x720mm |
| TOPY-VC3 | 300-1500kgs | 720L/m | 12L | Diameter 290x850mm |
TOPY-VC4 | 600-3000kgs | 1440L/m | 42L | Diameter 420x1150 |
TOPY-VC5 | 900-6000kgs | 2880L/m | 60L | Diameter 420x1150mm |
Air Compressor | 0.4-0.6MPa | |||
