TOP Y Food Flour Powder Grain Flexible Stainless Steel Screw Conveyor
- Model
- TOPY-SC1
Item specifics
- Product Name
- Screw Conveyor
- Application
- Transfer Powder
- Power supply
- 0.75-5.5KW
- Material
- 304/316L
- Feature
- High Efficiency
- Belt Material
- Stainless Steel
Review
Description

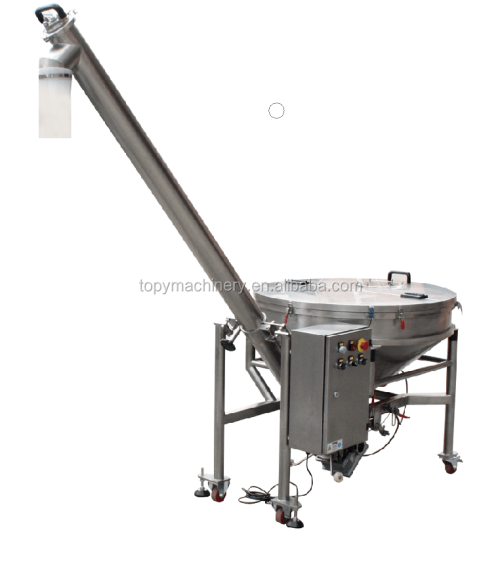

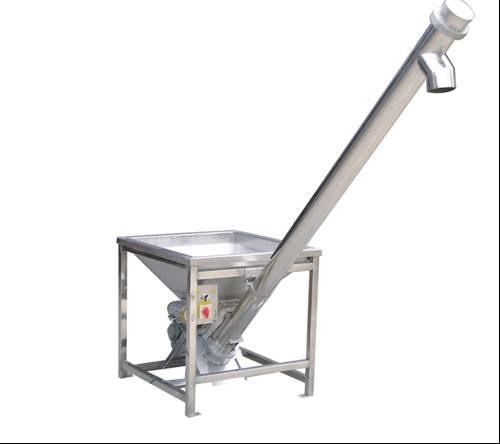

TOP Y Food Flour Powder Grain Flexible Stainless Steel Screw Conveyor
Feature
◇Humanism design, easy dismantle, no need any tools could dismantle the contact parts to clean,
◇ No any dead angle could leave so very suit for grocery industry. This whole process only one person one minute will be finished, save labor and high efficiency.

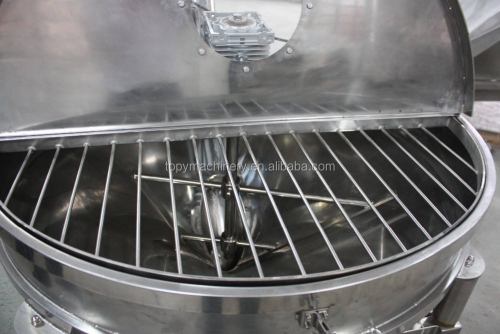

◇The hopper with arch breaker device, help you to shoot bridge problem.
◇Update Device: Polished screw, side-opening tube.
Application:
Screw Conveyor is suitable for powder products, such as milk powder, coffee powder, detergent powder and so on.
Specification
| Model No | TOPY-SC1 | TOPY-SC1 | TOPY-SC3 |
| Capacity | 3-5m3/h | 5-7m3/h | 5-7m3/h |
| Hopper Size | 230L | ||
| Discharging Height | ≤3000mm(optional) | ||
Material | Stainless Steel 304 | ||
A | 970mm | ||
B | 910mm | ||
Power | 3-phase 380V 50Hz,0.75-5.5KW | ||
Machine Weight | 70-350Kg | ||
Details
Package Pictures
