Multifunction Packaging Machines丨Fully Automatic Snacks 丨Cracker Potato Chips Grain丨Biscuit Pouch Packing Machine
- Model
- TOPY-MDPL
Item specifics
- Machine name
- Multifunction Packaging Machines
- Bag width
- 80-300mm
- Bag length
- 100-450mm
- Bag type
- doypack bag, stand up zipper pouch, gusset bag
- Voltage
- 110/220/240/380/415 V
- Pneumatic parts
- Eurovac Vacuum Pump from Taiwan
- Machine Material
- SS#304
- Speed
- 15-30bags/min
- Function
- Bag opening, filling, sealing, date coding
- Brand
- TOP Y MACHINERY
- Warranty
- 2years
Review
Description
Horizontal Premade Pouch Packaging Machine With Multihead Weigher For Snacks And Biscuits

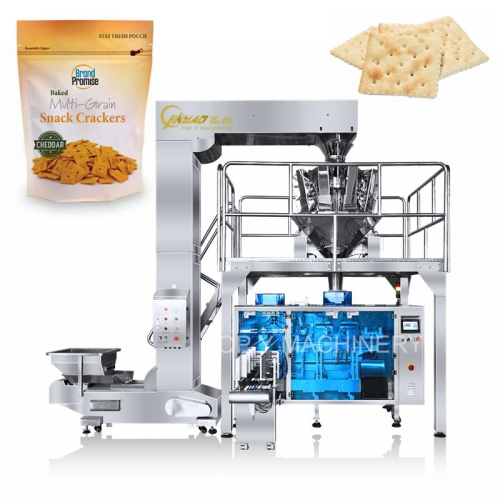

TOP Y Horizontal Premade Pouch Packaging Machine integrates a Z-type bucket conveyor, multihead weigher, and rotary pouch packing machine into one fully automatic packaging line. It is specially designed for potato chips, biscuits, cookies, nuts, puffed snacks, pet treats, candy, and other irregular products.
High Packaging Accuracy
Advanced weighing algorithms improve weighing precision and reduce material giveaway.
Gentle Product Handling
Designed to protect fragile products such as potato chips and biscuits.
Stable Operation
Industrial-grade PLC control system ensures reliable operation.
Easy Changeover
Quick recipe switching for different products.
Low Maintenance
Modular structure simplifies maintenance.
Food Safety Compliance
All contact parts are made from food-grade stainless steel.
Multifunction Packaging Machines Features
1. Servo motor to control and high speed to work.

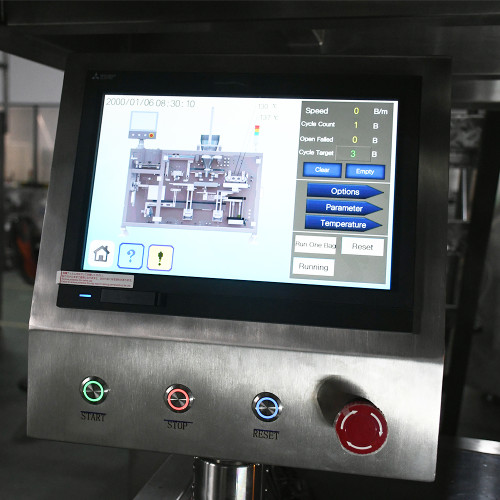

2. Easy to operate，adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system.
3. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm。
5. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easy operation and save time.
6. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
7.Use the plastic bearing for liquid products to resist the rust.
8. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
9. With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
10. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Multifunction Packaging Machines Specifications
Model No. | TOPY-MDPL1 | TOPY-MDPL2 | TOPY-MDPL3 |
Bag Width | 80-200mm | 100-260mm | 150-300mm |
Bag Length | 100-300mm | 150-400mm | 180-450mm |
Packing Speed | 24-27bags/min | 20-24bags/min | 15-20bags/min |
Bag Type | Stand-up bag, pillow bag | ||
Power Supply | 110V/220V/380V/415V, 50/60HZ | ||
Pneumatic Parts | EUROVAC vacuum pump, Pneumatic component Airtac from Taiwan | ||
Multifunction Packaging Machines Packaging Materials and Bag Type
Multifunction Packaging Machines Packaging Line Work
1.Product Feeding
Products are loaded into the Z conveyor hopper.
2.Vertical Transportation
The Z conveyor gently lifts products to prevent damage.

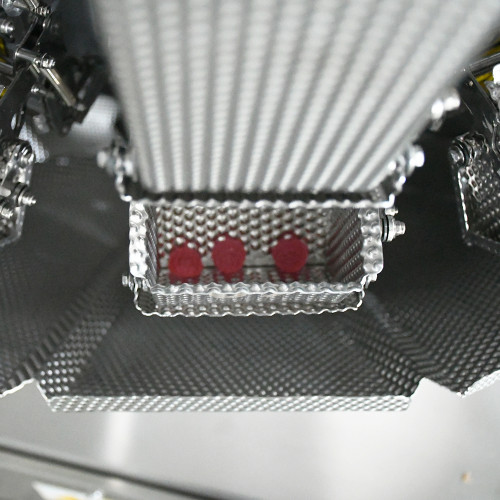

3.Precision Weighing
The multihead weigher calculates the best weight combination.
4.Pouch Picking
The machine automatically picks a premade pouch.
5.Pouch Opening
Vacuum suction cups open the pouch accurately.

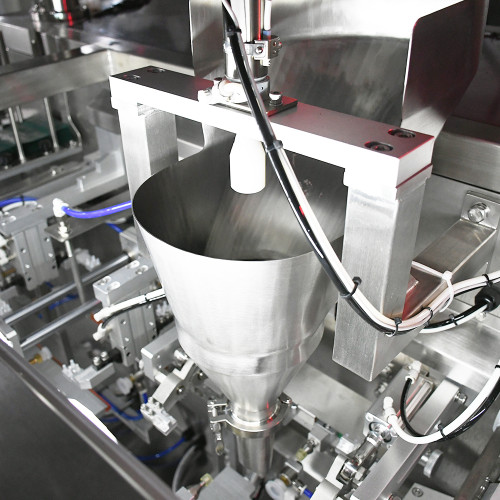

6.Product Filling
The weighed product enters the pouch.
7.Heat Sealing
The pouch is sealed securely.
8.Finished Product Output
Finished packages are discharged automatically.
Multifunction Packaging Machines FAQ
What is the packaging speed of the machine?
The machine can achieve 24-27 bags per minute depending on product characteristics and pouch size.
Can it pack fragile potato chips?
Yes. The machine is designed with gentle feeding and weighing systems to reduce breakage.
What pouch types are supported?
Stand-up pouch, zipper pouch, flat pouch, gusset pouch, quad seal pouch, and Doypack.
Is customization available?
Yes. We provide customized packaging solutions according to your product and pouch requirements.
