Linear Bagger Horizontal Packaging Machine丨TOP Y Tea Herb Packing Machine丨 Stand up Pouch Doypack Packaging Machinery
- Model
- TOPY-MDPL
Item specifics
- Machine name
- Horizontal packing machine
- Bag width
- 80-300mm
- Bag length
- 100-450mm
- Bag type
- doypack bag, stand up zipper pouch, gusset bag
- Voltage
- 110/220/240/380/415 V
- Pneumatic parts
- Eurovac Vacuum Pump from Taiwan
- Machine Material
- SS#304
- Speed
- 15-30bags/min
- Function
- Bag opening, filling, sealing, date coding
- Brand
- TOP Y MACHINERY
- Warranty
- 2years
Review
Description
Linear Bagger Horizontal Packaging Machine System
Automatic horizontal packing machine for your current and future needs! The functions of the packing system mainly are conveying, weighing, filling and bag sealing. Realize automatization, save labor and increase the output.
The flexibility of it allows us to customize the most suitable machine to meet your individual requirements!
A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder,
flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution

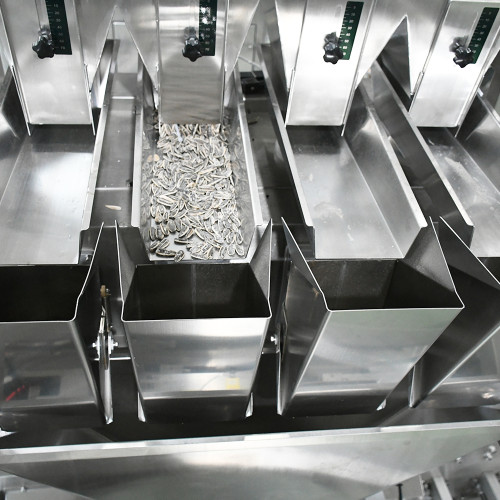

Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.
Linear Bagger Horizontal Packaging Machine Features
1. Servo motor to control and high speed to work.

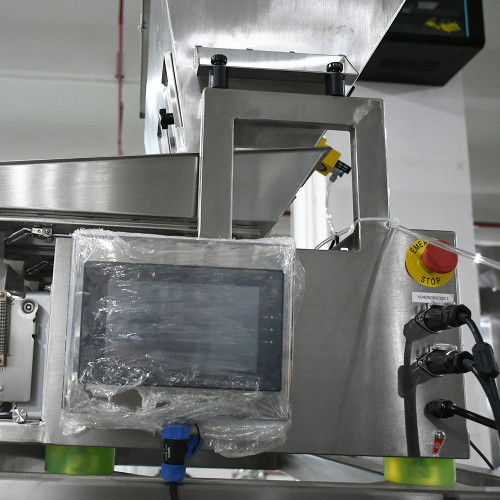

2. Easy to operate，adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system.
3. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm。

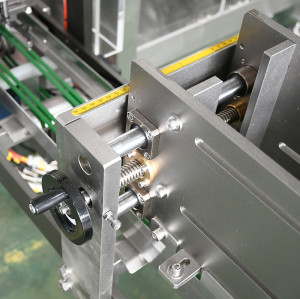

5. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easy operation and save time.
6. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
7.Use the plastic bearing for liquid products to resist the rust.
8. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
9. With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
10. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Linear Bagger Horizontal Packaging Machine Specifications
Model No. | TOPY-MDPL1 | TOPY-MDPL2 | TOPY-MDPL3 |
Bag Width | 80-200mm | 100-260mm | 150-300mm |
Bag Length | 100-300mm | 150-400mm | 180-450mm |
Packing Speed | 24-27bags/min | 20-24bags/min | 15-20bags/min |
Bag Type | Stand-up bag, pillow bag | ||
Power Supply | 110V/220V/380V/415V, 50/60HZ | ||
Pneumatic Parts | EUROVAC vacuum pump, Pneumatic component Airtac from Taiwan | ||
Linear Bagger Horizontal Packaging Machine Bag Type
Linear Bagger Horizontal Packaging Machine Applicable
Linear Bagger Horizontal Packaging Machine Details
Bag Feeder and Bag Packing Up Station
1.Flexible enough to fit different bagdimensions
2.Use the high quality suction cup topick up the bag

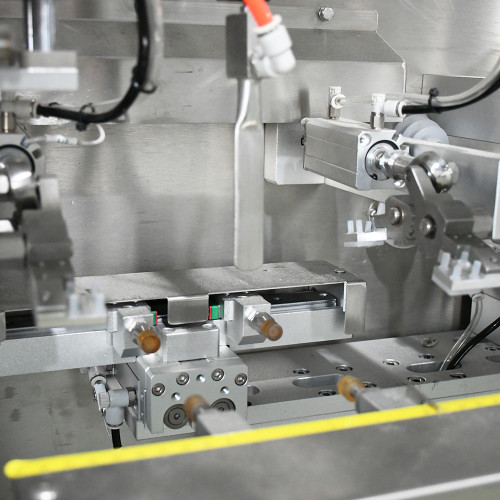

Bag Opening Station
1.Driven by servo motor, easy to adjust
2.Choose the suitable suction cupaccording to bag material
Bag Sealing Station
1.Adjustable temperature
2.Sealing type: heat seal/ultrasonic seal/sewing
High Speed
1.Highest speed can reach 20bags/min
2.It can be adjusted according to fillingtime
Linear Bagger Horizontal Packaging Machine Accessory Brands
