Automatic Nuts Packing Machine丨 Premade Bag Hazelnuts Packaging Machine丨 Snacks Doypack Filling 丨Nuts Packing Machine
- Model
- TOPY-MDPL
Item specifics
- Machine name
- Automatic Nuts Packing Machine
- Bag width
- 80-300mm
- Bag length
- 100-450mm
- Bag type
- doypack bag, stand up zipper pouch, gusset bag
- Voltage
- 110/220/240/380/415 V
- Pneumatic parts
- Eurovac Vacuum Pump from Taiwan
- Machine Material
- SS#304
- Speed
- 15-30bags/min
- Function
- Bag opening, filling, sealing, date coding
- Brand
- TOP Y MACHINERY
- Warranty
- 2years
Review
Description
Automatic Nuts Packing Machine Detailed Information

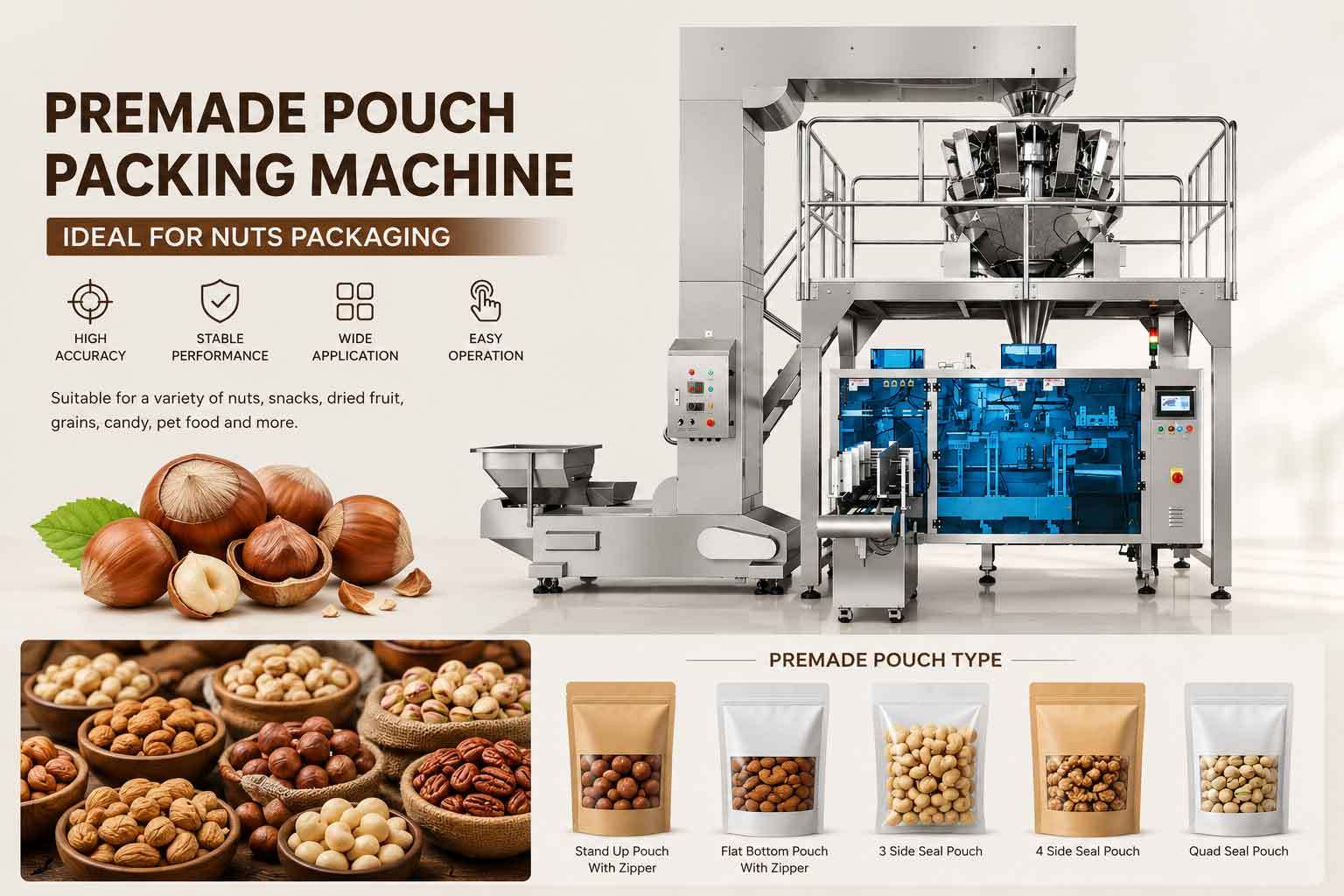

This horizontal premade pouch packing machine is specially customized for nuts & trail mix granular products. Made of full food-grade 304 stainless steel, it adopts horizontal pouch-gripping structure to finish full automatic packaging: pouch feeding, date coding, zipper opening, multi-head weighing filling, nitrogen flushing, heat sealing & finished product output. It solves industry troubles like nut breakage, oil oxidation, inaccurate weighing and slow pouch switching, ideal for nut factory, daily mixed nuts OEM and snack e-commerce mass production。
1. Horizontal soft pouch gripper avoids vertical falling collision, nut breakage rate below 0.8%, improve finished yield。
2. Matched with 10/14-head multihead weigher, weighing tolerance ≤±1%, filling range 20g~2500g to cut raw material waste。
flour, medicinal powder, etc.
3. Optional nitrogen flush system to isolate oil oxidation & moisture, extend shelf life for supermarket retail。
4. 7-inch Siemens touch screen with multi-language (CN/EN/ES), one-click parameter setting, SKU switch within 30 mins。
5. Full 304SS structure, dead-angle-free design for easy sanitization, meet food FDA & domestic food safety standard。
Raw material feeding → multi-head weighing → auto pouch picking → date coding → zipper/pouch opening → double-stage filling → optional nitrogen/vacuum → double heat sealing → finished pouch output。
Automatic Nuts Packing Machine Technical Specification
Model No. | TOPY-MDPL1 | TOPY-MDPL2 | TOPY-MDPL3 |
Bag Width | 80-200mm | 100-260mm | 150-300mm |
Bag Length | 100-300mm | 150-400mm | 180-450mm |
Packing Speed | 24-27bags/min | 20-24bags/min | 15-20bags/min |
Bag Type | Stand-up bag, pillow bag | ||
Power Supply | 110V/220V/380V/415V, 50/60HZ | ||
Pneumatic Parts | EUROVAC vacuum pump, Pneumatic component Airtac from Taiwan | ||
Automatic Nuts Packing Machine Applicable Products & Pouch Types
Nut Materials
Almond, cashew, pistachio, macadamia, walnut, pecan, peanut, pumpkin seed, trail mix, dried fruit & nut blend; also applicable for gummies， roasted snacks, cereal grains。
Pre-made Pouch Types
Stand-up zipper pouch, 3-side seal bag, 4-side gusset bag, euro-hole pouch, flat bottom pouch, spout pouch; compatible with AL-foil, PP/PE composite, paper-plastic laminated packaging film。
Automatic Nuts Packing Machine Details
High Speed
1.Highest speed can reach 20 bags/min
2.It can be adjusted according to filling time
Bag Feeder and Bag Packing Up Station
1.Flexible enough to fit different bag dimensions
2.Use the high quality suction cup to pick up the bag
Bag Opening Station
1.Driven by servo motor, easy to adjust
2.Choose the suitable suction cup according to bag material
Bag Sealing Station
1.Adjustable temperature
2.Sealing type: heat seal/ultrasonic seal/sewing
Automatic Nuts Packing Machine Renowned Accessory Brands
Automatic Nuts Packing Machine Loading Photos / Customer Reviews / Exhibition Photos
Every unit leaving our facility undergoes a rigorous, multi-stage quality inspection process—including comprehensive system debugging, no-load testing, material-load trials, precision calibration, and aging tests—ensuring that 100% of the equipment is fully verified prior to shipment. The complete machine is secured within multi-layered protective packaging, utilizing sturdy solid-wood export crates; components are separated, categorized, and packed individually to prevent damage, loosening, or the loss of parts caused by the bumps and vibrations inherent in long-distance sea and land transport. We strictly adhere to international trade export standards for packaging and loading, thereby guaranteeing that every piece of equipment arrives at the client's production site safely, in pristine condition, and on schedule.
This equipment is adaptable to the automated packaging of a wide variety of product categories. Featuring a fully automated, integrated packaging workflow, it effectively boosts overall factory production capacity and shipping efficiency. The finished packages exhibit a uniform appearance and superior sealing integrity, thereby significantly enhancing the product's retail appeal and market competitiveness. The equipment demonstrates stable performance during continuous, long-term operation, characterized by a low failure rate, simple maintenance, and convenient cleaning. Consequently, it has earned the unanimous recognition—as well as sustained repeat business—from a broad base of domestic and international clients.
We participate year-round in major domestic and international trade shows within the food machinery industry. At these exhibitions, we consistently offer live machine demonstrations, on-site sample production, technical consultations, and customized solution services, welcoming industry buyers, factory owners, and equipment distributors from around the globe. We remain steadfast in our commitment to continuous technological iteration, process optimization, and meticulous attention to detail. Our focus lies in providing the food packaging sector with automated packaging equipment—characterized by stability, efficiency, precision, and energy conservation—as well as comprehensive, integrated production line solutions. Through our professional expertise, we have earned the deep trust and fostered long-term partnerships with clients worldwide.
