Kraft Paper Premade Bag Packing Machine丨Coffee Beans Filling Machine 丨Zipper Stand up Plastic Pouch丨Horizontal Automatic Vacuum
- Model
- TOPY-MDPL
Item specifics
- Machine name
- Kraft Paper Premade Bag Packing Machine
- Bag width
- 80-300mm
- Bag length
- 100-450mm
- Bag type
- doypack bag, stand up zipper pouch, gusset bag
- Voltage
- 110/220/240/380/415 V
- Pneumatic parts
- Eurovac Vacuum Pump from Taiwan
- Machine Material
- SS#304
- Speed
- 15-30bags/min
- Function
- Bag opening, filling, sealing, date coding
- Warranty
- 2years
Review
Description

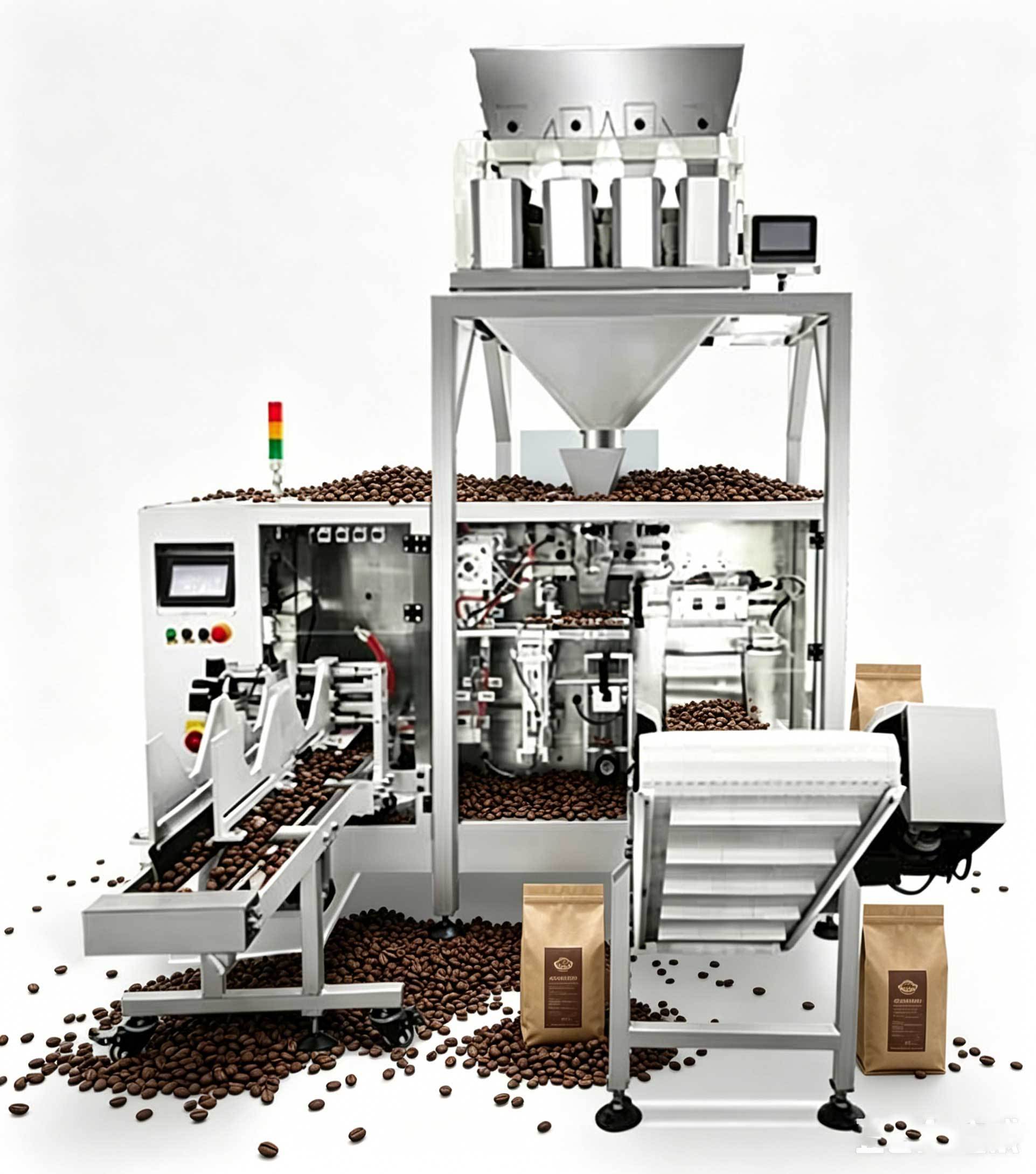

Kraft Paper Premade Bag Packing Machine
Advantage
✅ More aesthetically pleasing bag shape: The bags are filled flat, ensuring even distribution of coffee beans, resulting in neat and tidy bags without bulging or misalignment, and providing a better display effect.
✅ Better aroma retention: Low dust and low breakage, combined with freshness-locking technology, maximizes the preservation of coffee bean flavor.
✅ Professional bag type support: Easily adapts to coffee bags with one-way valves, which is difficult to achieve with vertical machines.
✅ Easier maintenance: The low-profile design eliminates the need for climbing for cleaning, making it suitable for hygiene management in food processing plants.
✅ Greater versatility: The same machine can switch between different weights and bag types to meet the production needs of multiple SKUs.
Packing Machine Applications
Bulk packaging of coffee beans for roasting plants, coffee brand owners, and food contract manufacturers. Packaging for specialty coffee, commercial coffee beans, drip bag coffee, and other applications. Suitable for mid-to-high-end coffee bean products requiring strict control of breakage rate and guaranteed freshness retention.
Kraft Paper Premade Bag Packing Machine Specifications
Model No. | TOPY-MDPL1 | TOPY-MDPL2 | TOPY-MDPL3 |
Bag Width | 80-200mm | 100-260mm | 150-300mm |
Bag Length | 100-300mm | 150-400mm | 180-450mm |
Packing Speed | 24-27bags/min | 20-24bags/min | 15-20bags/min |
Bag Type | Stand-up bag, pillow bag | ||
Power Supply | 110V/220V/380V/415V, 50/60HZ | ||
Pneumatic Parts | EUROVAC vacuum pump, Pneumatic component Airtac from Taiwan | ||
Kraft Paper Premade Bag Packing Machine Bag Type and Materials
Side gusset bag/box with zipper bag
Roasted coffee beans/ground coffee

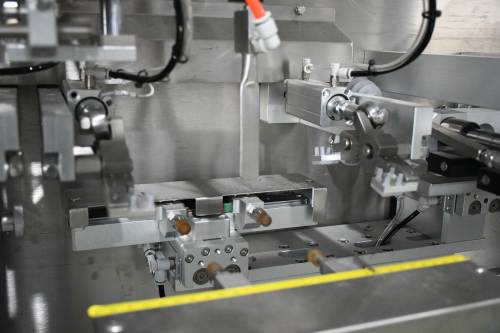

Kraft Paper Premade Bag Packing Machine Details
High Speed
1.Highest speed can reach 20 bags/min
2.It can be adjusted according to filling time

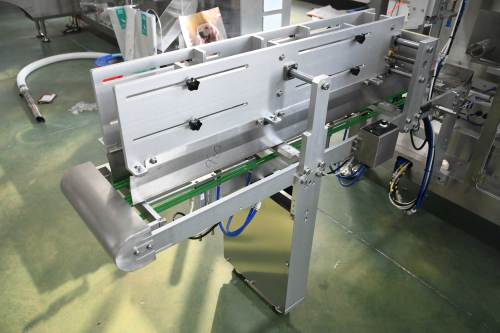

Bag Feeder and Bag Packing Up Station
1.Flexible enough to fit different bag dimensions
2.Use the high quality suction cup to pick up the bag
Bag Opening Station
1.Driven by servo motor, easy to adjust、
2.Choose the suitable suction cup according to bag material
Bag Sealing Station
1.Adjustable temperature
2.Sealing type: heat seal/ultrasonic seal/sewing Sample Content
Premade Bag Packing Machine Electric Parts Use Brand
