Automatic Doypack Packing Machine丨Almond Dry Fruit 丨Premade Bag Packaging Machine丨Peanuts Walnut Cashew Pistachio Nut Dried Fruit
- Model
- TOPY-MDPL
Item specifics
- Machine name
- Automatic Doypack Packing Machine
- Bag width
- 80-300mm
- Bag length
- 100-450mm
- Bag type
- doypack bag, stand up zipper pouch, gusset bag
- Voltage
- 110/220/240/380/415 V
- Pneumatic parts
- Eurovac Vacuum Pump from Taiwan
- Machine Material
- SS#304
- Speed
- 15-30bags/min
- Function
- Bag opening, filling, sealing, date coding
- Brand
- TOP Y MACHINERY
- Warranty
- 2years
Review
Description

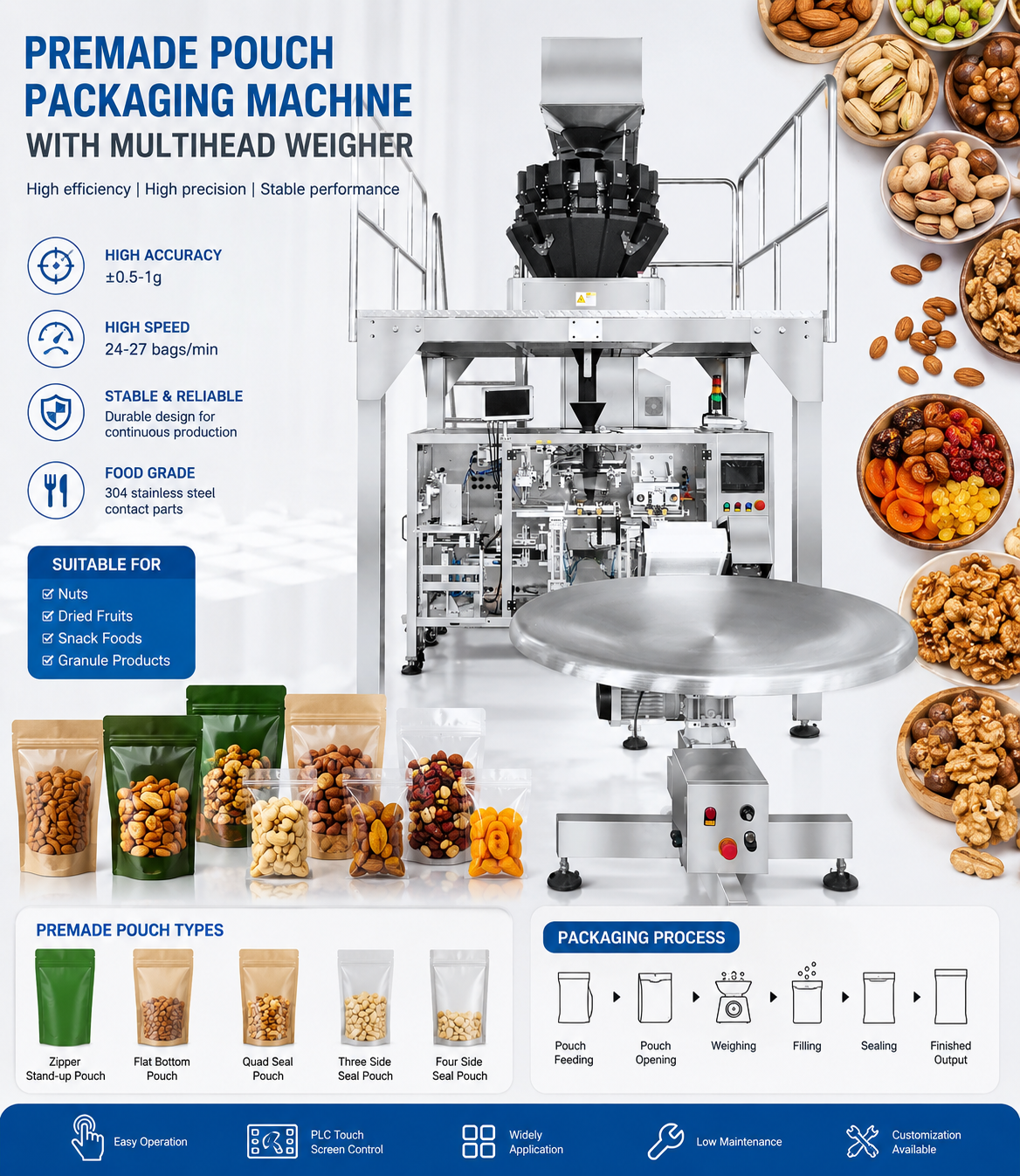

Automatic Doypack Packing Machine Product Introduction and Core Advantages
Adopting horizontal bag feeding structure and intelligent multi-head combination weighing system, the equipment supports multi-gear quantitative weighing and perfectly matches mainstream cross-border and supermarket packaging specifications of 8oz, 16oz, 2lb and 3lb. With high full-automatic degree, it realizes unmanned operation in the whole process of bag picking, bag opening, dust removal, precise weighing & feeding, heat sealing, date printing and finished product discharging. It is widely applicable for mixed nuts, cashews, almonds, pistachios, raisins, cranberries, walnuts, melon seeds and other dried fruits, serving as the preferred equipment for food factories, dried fruit processing enterprises and cross-border e-commerce packaging.
A. Multi-head Precise Weighing, Zero Error Discharging
Equipped with high-precision intelligent multi-head combination scale, it optimizes the weighing algorithm for uneven and irregular dried fruit particles, completely avoiding single-bucket weighing deviation. With accurate weighing and uniform speed, it eliminates insufficient weight and uneven packaging, fully complies with domestic and foreign food weighing standards, and effectively reduces material loss and after-sales costs.
B. Horizontal Low Feeding, Anti-breaking & Good Appearance
Different from vertical packaging machines that cause material breaking due to high-altitude feeding, this machine adopts stable horizontal bag feeding and low-position soft feeding design. It maximally protects fragile materials such as cashews, pistachios and crispy dried fruits, effectively reducing breaking and residue during packaging, maintaining perfect product appearance and improving product grade and market premium.
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
C. Full Automation, Great Labor Cost Saving
The machine integrates full-process functions including automatic bag picking, opening, inflating, weighing & filling, heat sealing, date printing and discharging. One production line can replace 4-10 workers. It supports batch production with one-click start without manual auxiliary operation. With stable operation and low failure rate, the equipment can recover costs in a short time and greatly reduce factory labor and management costs in the long run.
D. Multi-bag Compatibility, High-grade & Neat Packaging
It is fully compatible with various pre-made bags such as stand-up bags, zipper bags, flat bottom bags, three-side sealed bags and frosted bags. The flat and uniform sealing with excellent air tightness effectively prevents moisture and oxidation, locks freshness and prolongs the shelf life of dried fruits. The finished packages are wrinkle-free and leak-proof with high-grade appearance, suitable for supermarkets, cross-border e-commerce, live streaming and all sales channels.
E. Food-grade Material, Safe, Hygienic & Easy to Clean
All material contact parts are made of 304 food-grade stainless steel, which is corrosion-resistant, rust-proof and residue-free, fully meeting food safety production standards. The modular detachable structure enables dead-angle-free cleaning, facilitating daily maintenance and material replacement, avoiding cross-contamination and complying with standardized production specifications of food factories.
Automatic Doypack Packing Machine Specifications
Model No. | TOPY-MDPL1 | TOPY-MDPL2 | TOPY-MDPL3 |
Bag Width | 80-200mm | 100-260mm | 150-300mm |
Bag Length | 100-300mm | 150-400mm | 180-450mm |
Packing Speed | 24-27bags/min | 20-24bags/min | 15-20bags/min |
Bag Type | Stand-up bag, pillow bag | ||
Power Supply | 110V/220V/380V/415V, 50/60HZ | ||
Pneumatic Parts | EUROVAC vacuum pump, Pneumatic component Airtac from Taiwan | ||
Automatic Doypack Packing Machine Materials and Bag Type

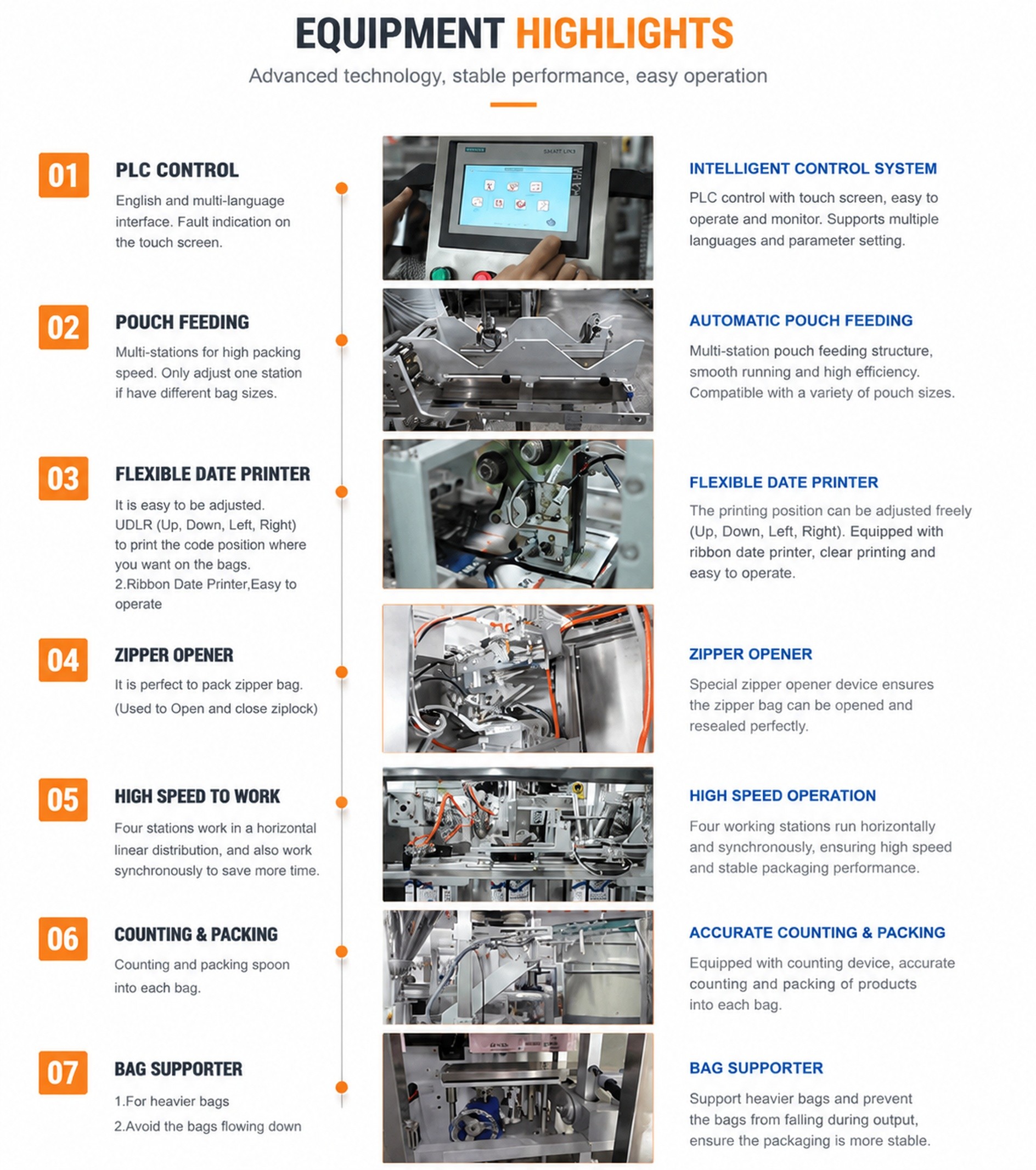

Automatic Doypack Packing Machine Equipment Highlights
1. Intelligent Touchscreen Operation
The user-friendly PLC control system features a multilingual touchscreen interface for easy operation, recipe storage, and real-time monitoring.
2. Stable & Flexible Pouch Handling
The advanced pouch feeding mechanism automatically picks and positions premade pouches with high precision and stability.
3. Accurate Production Date Printing
The integrated ribbon coding printer allows flexible adjustment of printing position for production dates, batch numbers, and traceability information.
4. Perfect Solution for Zipper Pouches
Specially designed zipper opening technology ensures smooth pouch opening and reliable resealing for zipper bags.
5. Maximized Production Efficiency
Multiple working stations operate simultaneously to achieve continuous packaging with stable performance.
6. Precise Product Quantity Control
The intelligent counting system accurately counts products before packaging to ensure consistency in every pouch.
7. Stable Packaging for Large Bags
The bag support device prevents heavy pouches from dropping during filling and sealing operations.
